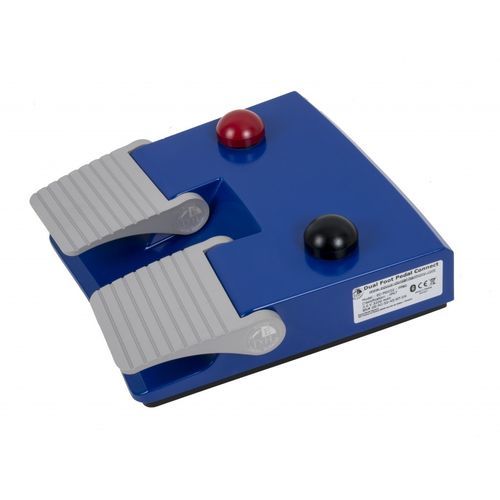

Veterinary dentistry footswitch EC-PDC02

for micro motorfor suction unitselectric

Overview

Wireless double foot pedal Connect is a Bluetooth-enabled double pedal designed for equine and veterinary dentistry to remotely control motor speed and other devices in the Connect range. It centralizes control of motors, pumps and accessories and provides progressive speed variation via a double drive with configurable command buttons.

Main control functions

• Control the speed of a wired motor (progressive variation via double drive)
• Right / left motor rotation (direction reversal)
• Switch on / switch off the water pump
• Switch on / switch off the suction
• Trigger pictures and videos on compatible endoscope (Tele pack Vet Storz)
• Customizable parallel commands for motor, Equus Jet and dimmer

Usage and connectivity
The pedal connects by Bluetooth to control all products in the Connect range (Equus Liberty Connect motor, Equus Jet Connect pump, Equus Dimmer Box Connect) and a wired motor. Settings can be modified via the Android application (smartphone/tablet) or the ON button on the unit.

Additional product features

• Double drive with progressive speed variation and two action buttons
• Auto power-off after 40 minutes of inactivity
• Rechargeable via dedicated base; charging time approximately 4 hours
• Battery life approximately 2 weeks (varies with use)
• Waterproof, washable housing for easy cleaning

Technical characteristics / specifications

• Commercial reference: EC-PDC02
• Denomination / model name: Wireless double foot pedal Connect
• Series: Connect range
• Brand: Equus
• Compatibility: Equus Liberty Connect motor, Equus Jet Connect pump, Equus Dimmer Box Connect and other Connect products
• Weight: 2.0 kg
• Battery recharge time: ~4 h
• Estimated battery life: ~2 weeks (depending on usage)
• Auto-off: 40 minutes of inactivity
• Ingress / cleaning: waterproof, washable pedal
• Manufacture: Made in France
