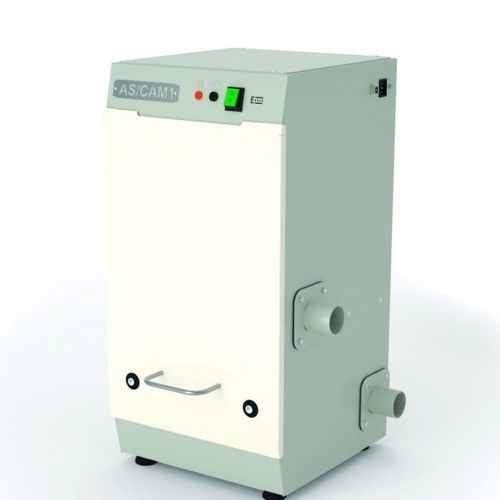

Dental laboratory dust suction unit AS/CAM1
portablewith filtration system

dental laboratory dust suction unit
dental laboratory dust suction unit
Add to favorites
Compare this product


Characteristics

Applications
for dental laboratories
Configuration
portable
Other characteristics
with filtration system
Power

1,000 W (1.36 hp)

Description

The AS/CAM1 is suitable for connection to a single milling machine. It is equipped with a new generation of universal motor, that doesn’t need replacement of carbon brushes, with an average life of approximately 2500 hours. The unit has a main sack filter, with a surface area of 7300 cm² and a secondary cartridge filter of 3650 cm². The two filters together comply with grade “H” of filtration under the EN-60335-2-69 standard. The air is discharged by mean of a 5 cm pipe direct to atmosphere , reducing the air temperature and recycling of untreated dust. Suction activation can be manual, or on request, automatic using a interface designed for any milling machine. The unit is equipped with a sensor that check the status of the filters and in case of filters full, activates a red warning light. Technical feature: · Noise: 65 dBa. · Dimensions: 41x43x71H cm (allow 15 cm space on the right for connections). AS/CAM1, AS/CAM1B, AS/CAM3 Suction sets specifically designed to work with a CAM dental milling machine. Theis suitable for connection to a single milling machine. It is equipped with a new generation of universal motor, 1000 W single phase 230V, that doesn’t need replacement of carbon brushes, with an average life of approximately 2500 hours. The unit has a main sack filter, with a surface area of 7300 cm2 ana a secondary cartridge filter of 3650 cm2. The two filters together comply with grade “H” of filtration under the EN-60335-2-69 standard.
