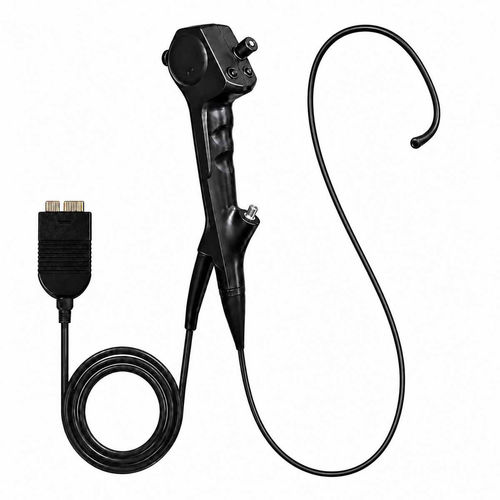

High-definition video bronchoscope BR-HD100

single usewith working channelflexible

Buy Now: https://www.escmedicams.com/online-store/Flexible-Video-Bronchoscope-Single-use-p850754197

ESC Medicams Single-Use Flexible Video Bronchoscope is designed for bronchoscopy, airway examination, pulmonary diagnostics and respiratory procedures requiring clear real-time visualization of the airway.

The bronchoscope features an integrated HD CMOS chip-on-tip camera with 720p imaging and bright distal-tip LED illumination for visualization of the trachea, bronchi and surrounding airway structures. Adjustable LED intensity allows the image brightness to be optimized according to procedural requirements.

Its slim 4.8 mm insertion tube and 600 mm working length provide controlled navigation through the airway. The integrated 2.4 mm working channel supports compatible bronchoscopy instruments, suction and fluid management during procedures.

The flexible distal tip provides controlled up-and-down angulation for maneuverability through the airway and improved access to difficult anatomical areas.

Key Features

• Single-use disposable flexible video bronchoscope
• HD 720p imaging with integrated CMOS chip-on-tip camera
• Bright distal-tip LED illumination
• Adjustable LED light intensity
• Slim 4.8 mm insertion tube
• 600 mm working length
• Integrated 2.4 mm working channel
• Flexible up/down distal-tip angulation
• 120° field of view
• Integrated suction port and suction control button
• One-touch white balance
• Snapshot capture button
• Smooth rotating control mechanism
• Sterile single-use design
• Compatible with ESC Medicams FLX Series video processor

Technical Specifications

• Device Type: Single-Use Flexible Video Bronchoscope
• Imaging System: HD CMOS Camera
• Image Resolution: HD 720p
• Image Sensor: 1 Megapixel
• Illumination: Integrated Distal-Tip LED Light
• Working Length: 600 mm
• Insertion Tube Diameter: 4.8 mm
• Working Channel Diameter: 2.4 mm
• Working Channel: 1 Channel
• Tip Angulation: 210° Up / Down
• Field of View: 120°
• Suction Function: Integrated Suction Port and Suction Button
• Control Functions: White Balance, Snapshot Capture and Rotating Control Mechanism
• Usage Type: Disposable / Single-Use
• Compatible Processor: ESC Medicams FLX Series Image Control Unit

Single-Use Disposable Design

The bronchoscope is intended for single-patient use, eliminating the need for cleaning, disinfection and reprocessing of the scope after the procedure. The disposable design also helps reduce the maintenance and repair requirements associated with reusable flexible bronchoscopes.

Compatible Video Processor

The bronchoscope connects to the ESC Medicams FLX Series Image Control Unit Processor for real-time video display, image capture, video recording and adjustable image settings.

Processor features include

• Real-time HD visualization
• Image capture
• Video recording
• Adjustable image parameters
• LED intensity control
• Optional support for compatible rigid endoscope camera heads

Please Note:
The compatible FLX Series video processor is sold separately unless specifically included in the selected package.
