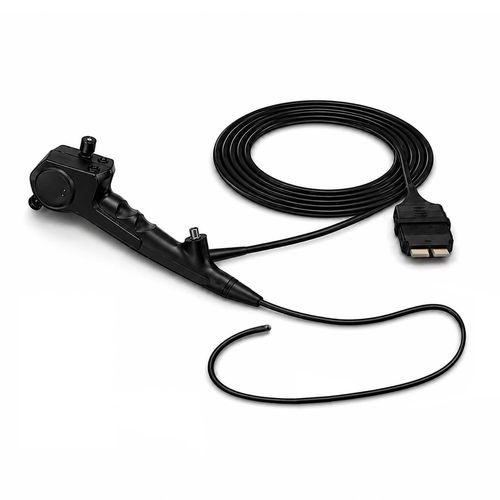

High-definition video rhino-laryngoscope LR-HD100

flexiblesingle use

Buy Now : https://www.escmedicams.com/online-store/Flexible-Rhino-Laryngoscope-Single-use-p850749965

ESC Medicams Single-Use Flexible Video Rhino-Laryngoscope is designed for diagnostic ENT examinations and clear real-time visualization of the nasal cavity, pharynx, larynx and vocal cords.

The rhino-laryngoscope features an integrated HD CMOS chip-on-tip camera with 720p imaging and bright distal-tip LED illumination. Its ultra-slim 2.2 mm insertion tube supports smooth transnasal navigation through narrow nasal passages while improving patient comfort during examination.

The flexible distal tip provides 130° up-and-down angulation for controlled navigation and improved visualization of nasal, pharyngeal and laryngeal anatomy. The 300 mm working length is suitable for routine ENT, rhinoscopy, nasopharyngoscopy and laryngoscopy procedures.

Key Features

• Single-use disposable flexible video rhino-laryngoscope
• HD 720p imaging with integrated CMOS chip-on-tip camera
• Bright distal-tip LED illumination
• Ultra-slim 2.2 mm insertion tube
• 300 mm working length
• 130° up-and-down tip angulation
• 120° field of view
• One-touch white balance
• Snapshot image capture button
• Smooth rotating control mechanism
• Sterile single-use design
• Compatible with ESC Medicams FLX Series video processor
• Designed for ENT and transnasal diagnostic examinations

Technical Specifications

• Device Type: Single-Use Flexible Video Rhino-Laryngoscope
• Alternative Name: Flexible Video Rhinolaryngoscope
• Imaging System: HD CMOS Camera
• Image Resolution: HD 720p
• Image Sensor: 1 Megapixel
• Illumination: Integrated Distal-Tip LED Light
• Working Length: 300 mm
• Insertion Tube Diameter: 2.2 mm
• Tip Angulation: 130° Up / Down
• Field of View: 120°
• Working Channel: Not Available
• Control Functions: White Balance, Snapshot Capture and Rotating Control Mechanism
• Usage Type: Disposable / Single-Use
• Compatible Processor: ESC Medicams FLX Series Image Control Unit

Designed for ENT Examination:
The slim flexible video rhino-laryngoscope supports visualization of the nasal cavity, nasopharynx, pharynx, larynx and vocal cords. Its narrow 2.2 mm insertion tube is suitable for transnasal examination and navigation through confined anatomical pathways.

Single-Use Disposable Design:
The rhino-laryngoscope is intended for single-patient use and is supplied in sterile packaging. Its disposable construction eliminates the need for cleaning, high-level disinfection and reprocessing after the procedure.

Compatible Video Processor:
The scope connects to the ESC Medicams FLX Series Image Control Unit Processor for real-time video display, image capture, video recording and adjustable image settings.

Processor features include:

• Real-time HD visualization
• Image capture
• Video recording
• Adjustable image parameters
• LED intensity control
• Optional support for compatible rigid endoscope camera heads

Please Note:
The compatible FLX Series video processor is sold separately unless specifically included in the selected product package.
