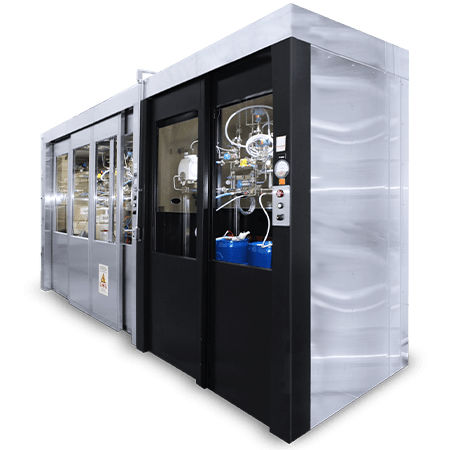

Chemical fume hood EGH series
containmentlaboratoryfor the pharmaceutical industry

chemical fume hood
chemical fume hood
chemical fume hood
Add to favorites
Compare this product


chemical, containment
laboratory, for the pharmaceutical industry, biological
floor-standing, modular
Filter type
Air flow type
laminar flow, with air curtain
Structure material
stainless steel
Face velocity

0.5 m/s (1.6 ft/s)


1,400 mm, 3,200 mm (55.12 in)


2,400 mm, 2,800 mm, 3,200 mm (94.49 in)


The Esco Glassware Hood (EGH) is the premium containment solution providing a controlled environment for specialized equipment in kilo labs, pilot plant, or R&D facility. This may also act as an industrial fume hood in facilities requiring corrosion resistance against large volumes of solvents and chemicals. Coined after “glassware reactors” and “fume hoods”, EGH is a customizable unit designed to contain glassware set-ups for batch reactions, distillation set-ups, and chemical synthesis. It is capable of providing operator protection against fumes and spillages/breakages as well as protection against the explosive properties of fumes/vapors. Features Accessible Panel Removable panels for utility piping access Durable Doors Toughened glass sashes in sliding doors Modular Design Allows future system adjustment without full booth alteration with available option to fully customized the unitIntegrated Controls Integrated Controls Option for airflow alarm and indicator light/s for monitoring
