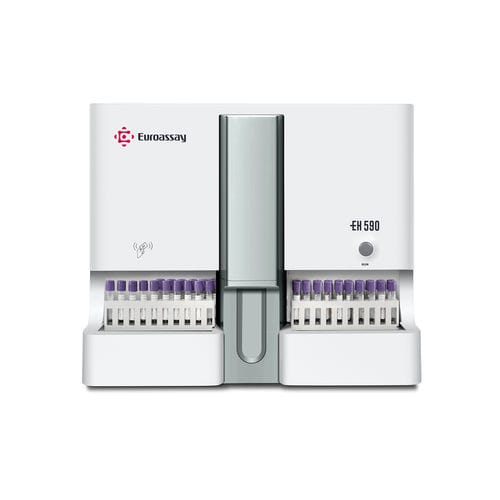

Automatic hematology analyzer EH 590

benchtop25-parameter3-part differentiation

Ensure a reliable instrument performance with stringent material selection and intelligent design of system components. OVERVIEW CAPILLARY BLOOD - SAMPLE - LOADING - PATIENT-REPORTEDOUTCOMES - EXCELLENT DATA MANAGEMENT Sample auto loading, mixing and sampling Multiply sample modes Closed and open vial modes HS: High angle scatter - —► - Cellular complexity MS: Middle angle scatter - —► - Cellular granularity Low angle scatter —► Cell volume 3D Rotatable Scattergram for accurate différentiation and pathological sample flag. Advanced Flow Cytometry 2D-Scattergrams Distinct Diff 3D-Scattergrams SPECIFICATIONS Cyanide free colorimetry for HGB test Laser-based flow cytometry for WBC differentiation Reagent - Plasma Diluent 590 (20 L); Lyse EH 1 (500 mL); Lyse EH 2 (500 mL); Lyse EH 3 (1000 mL) Sample Mode - Whole blood, Capillary whole blood and Pre-diluted Repeatability - WBC ≤2.0%(4.0-15.0 x 109/L) RBC ≤1.5%(3.5-6.0 x 1012/L) HGB ≤1.5%(110-180g/L) MCV ≤1%(70-120fL) PLT ≤6.0%(100-149x 109/L) ≤4.0%(150-500 x 109/L) Storage - Up to 100,000 records Linearity Range - WBC: 0.00-300 x 109/L RBC: 0.00-8.50 x 1012/L HGB: 0-250g/L PLT: 0-3000 x 109/L HCT: 0 -67% Data Transmission - Support bi-directional LIS Power Requirement - 100V ~ 240V, 50/60Hz, ≤ 250VA
