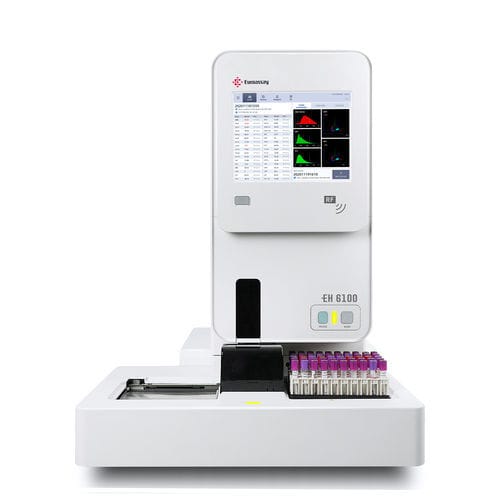

Automatic hematology analyzer EH 6100
benchtop29-parameterflow cytometry

Add to favorites

Compare this product

Go to the Euroassay Saglik A.S. website for more information

Characteristics

Operation: automatic
Configuration: benchtop
Number of parameters: 29-parameter
Technology: flow cytometry
Other characteristics: with touchscreen
Throughput: 100 p/h
Sample volume: 0.02 ml, 0.03 ml, 0.035 ml
(0.00068 US fl oz, 0.00101 US fl oz, 0.00118 US fl oz)
Weight: 100 kg
(220.5 lb)
Width: 665 mm
(26.2 in)
Height: 870 mm
(34.3 in)

Description

Comprehensive, High-quality Hematology Solutions OVERVIEW CAPILLARY BLOOD SAMPLING SAMPLE LOADING PATIENT-REPORTED OUTCOMES EXCELLENT DATA MANAGEMENT EH 6100 offers a great experience with its eye-catching and easy-to-use design. Semi-conductor-based Laser Scattering Technology Fluorescence Method Flow Cytometry SPECIFICATIONS Principles - CBC+DIFF/RET: Semi-conductor Laser scattering & Fluorescent method & Flow cytometry method WBC/RBC/PLT counting: Impedance method HGB: Cyanide-free colorimetry method Reagent - Plasma Diluent-N (20 L); Plasma Diluent-R (1000 mL); Lyse-G (500 mL); Lyse-D (1000 mL); EH 6100 FDN-D (22 mL); EH 6100 FDN-R (12 mL) Sample Mode - Venous whole blood, capillary blood Repeatability - WBC ≤2.5%(4.0-15.0 x 109/L) RBC ≤1.5%(3.5-6.0 x 1012/L) HGB ≤1.0%(110-180g/L) HCT ≤1.5%(30.0-50.0) MCV ≤1%(70-120fL) PLT ≤4.0%(100-500x 109/L) Sample Volume - CBC: 20ul; CBC+DIFF: 30ul; CBC+DIFF+RET: 35ul (Whole blood) Storage - Up to 150,000 records Linearity Range - WBC: 0.00-500 x 109/L RBC: 0.00-8.60 x 1012/L HGB: 0-260g/L HCT: 0.0-75.0 % PLT: 0-5000 x 109/L Data Transmission - Bi-directional LIS supported Power Requirement - AC 100V ~ 240V (50-60Hz) HCT: 0-30.0 %
