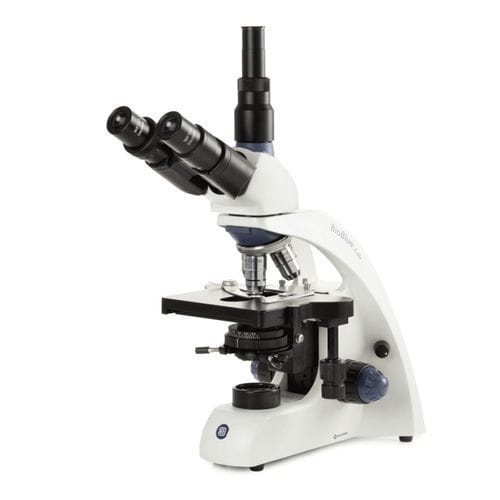

Optical microscope BioBlue.Lab

laboratorybinocularplan

The BlueLine flagship BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions Highlights Reversed quadruple nosepiece Plan and plan IOS objectives Finity and infinity optical system Integrated mechanical stage NeoLED™ illumination Ergonomic carrying grip EYEPIECES Wide field WF 10x/20 mm eyepieces HEAD • The interpupillary distance is adjustable between 48 to 75 mm • All models have a ±5 diopter adjustment on left tube • All heads are 360° rotatable and secured with a screw • The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image NOSEPIECE Reversed quadruple nosepiece on ball bearings OBJECTIVES - 45 MM PARFOCAL • BioBlue.Lab microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives STAGE Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage CONDENSER • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with white filter • Heigth adjustable Zernike phase contrast kit with PLPHi IOS objectives and rotating phase contrast disc with four annuli,
