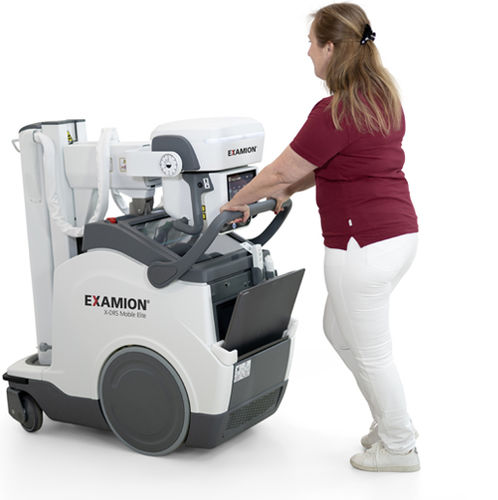

Digital mobile radiography unit X-DRS Elite

Everyday hospital life brings with it high workloads, staff shortages and cost pressure. A mobile X-ray system such as the X-DRS Mobile Elite from EXAMION offers an efficient solution here. Thanks to digital imaging, you can control the entire imaging process directly at the patient's bedside and improve patient care. EXAMION systems also impress with their durability and high cost-effectiveness.The mobile X-ray system X-DRS Mobile Elite will convince you with:Easy and precise positioningEasy operationEasy driving and maneuveringEffortless positioning in tight spaces, thanks to the long-reach telescopic arm and 317° column rotationThe hand grips on the tube head enable free movements of the tube in any directionsFine-tuning buttons on the tube handles enable the operator to adjust the position of the system precisely while standing close to the tube.Motorized and smooth drivingCompact and ergonomicOnly one hand needed to move the whole unitSpeed up to 5.5 km/hStress-Free driving and a complete visibility aheadSmall turning radius on the spotAdditional touch screen on the tube head; selection of exposure parameters and display of the image preview on both screens, no matter where the operator is in the roomDual side collimator control panel on the front and backSafe storage options for detectorsShort examination timeFast path to diagnosisComprehensive serviceMaintenance conceptsProfitabilityFuture-proofHigh image qualityImmediate availability of digital imagesEasy to drivePrecise positioningSmooth workflowLittle training requiredFinancing conceptsRental modelsPowered by X-AQS EXAMION X-ray software: Digital X-ray imaging in the shortest possible time, easy access to patient data & worklist, customizable organ tree, comprehensive integrated positioning aid and preset exposure values.Motorized mobile X-ray system with telescopic column and electromagnetic brakesDimensions (l × w × h) in parking position: 122 cm × 54 cm × 129 cmWeight: 520 kgFocal point distance from floor: min. 53 cm, max. 202 cm (focus)Tube arm extension: max. 122 cmColumn rotation: ± 317°Tube head rotation: Around arm axis: ±180°, Around axis perpendicular to arm: -30°/+90°Driving speed: Forwards: 5.5 km/h, Backwards: 2.5 km/hRamp angle: max. 8°Generator power (high frequency): 32 kW, 40 kW, 50 kWkVp range: 40 to 150 kVp in 1 kVp stepsmA range: 10 to 500 mA (10 to 630 – Option)mAs range: 0.1 to 500 mAsExposure time range: 0.001 – 10 sFocal spots: 0.7 mm/1.3 mmAnode heat capacity: 300 kHUAnode target angle: 16°Separate batteries for driving and generator control, optimized battery management with “Energy Recovery Technology”Charge capacity: 15 AhPower for charging: 100 – 240 VAC ± 10 %, Single phase 50/60 HzTime to be charged: Fully charged: 8 hours, 80 % charged: 4 hoursAutonomy: More than 800 exposures (80 kV – 400 mA – 5 ms) 25 km continuous movement @ 5.5 km/h More than 11 hours in stand-by (system ready for operation)Total energy storage capacity: 5,760 WhModel: X-DR L WiFi Premium, X-DR XL WiFi PremiumPixel pitch: 100 μmPixel matrix: 3500 × 4300, 4267 × 4267Active area: 35 cm × 43 cm, 43 cm × 43 cmAD conversion: 16 bitWeight: 3.0 kg, 3.4 kgIngress protection: IP56Battery capacity: 8.5 hours, 7.5 hoursMain monitor: 19" capacitive touch-screen monitorTube head monitor: 9" capacitive touch-screen monitor
