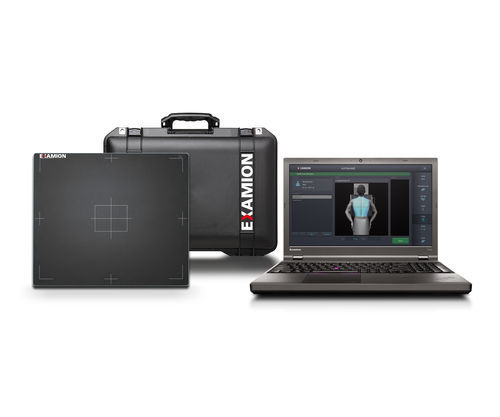

Radiography acquisition system X-DR PORTABLE CASE L
portable

radiography acquisition system
radiography acquisition system
radiography acquisition system
radiography acquisition system
Add to favorites
Compare this product

Characteristics

Imagery type
for radiography
Ergonomics
portable

Description

X-DR PORTABLE CASE L WIFI Technical data Detector X-DR L WiFi Detection method Indirect conversion, a-Si TFT Scintillator CsI Dimensions (W x H x D) 460 mm x 384 mm x 15.2 mm (18.1“ x 15.1“ x 0.6“) Weight 3.7 kg (8.2 lbs) Pixel matrix 2,304 x 2,800 pixel Pixel pitch 150 µm Active area 35 cm x 42 cm (14" x 17") A/D conversion 14 bits Spatial resolution min. 4.0 lp/mm Image transfer time 5 s Power consumption max. 12 W Synchronisation AED (Automatic Exposure Detection) / external trigger Housing material Magnesium aluminum alloy Weight limit Local load: 100 kg at Ø 40 mm Uniform load: 100 kg at effective image area overall Enviromental conditions Operating Temperature: 5 °C to 40 °C (41 °F to 104 °F) Humidity: 20 % to 85 % (non-condensing) Atmospheric pressure: 700 hPa to 1060 hPa Transport / Storage Temperature: -20 °C to 55 °C (-4 °F to 131 °F) Humidity: 5 % to 95 % (non-condensing) Atmospheric pressure: 700 hPa to 1060 hPa Battery Type: Lithium Polymer Charging time: 2 hours Working time (with one battery): 4 hours @ 200 images Life: min. 1000 charging cycles Regulatory requirements and standards CE 2460 Capture console, consisting of X-HW More Acquisition Notebook, X-AQS PACS software (controls detector, image acquisition and optimization), X-AQS Module Horsemode, X-AQS Module Dropbox Cloud Transport Solution High-tech carrying case Dimensions (L x W x D): 590 mm x 525 mm x 225 mm (23.2“ x 20.7“ x 8.9“) Total weight (fully equipped): < 18 kg (40 lbs) Material: Lightweight strong HPX@ Resin, watertight, dustproof
