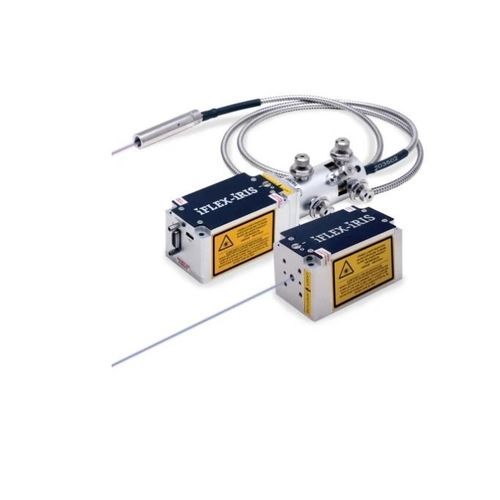

Microscope light source iFLEX-iRIS™

lasercompact

Our iFLEX-iRIS™ Lasers represent a compact, high-performance, laser illumination source delivering exceptional power stability and low amplitude noise for high-resolution bio-imaging, ophthalmology and metrology applications. iFLEX-iRIS Lasers feature on-board Closed-Loop Modulation and are available in wavelengths from 375-852 nm at power levels up to 200 mW. They are ideal for both free-space use or with our kineFLEX® polarization-maintaining fiber-delivery system. Ultra-Stable Closed-Loop Modulation iFLEX-iRIS comes standard with Closed-Loop Modulation (CLM) for further performance stability with very low periodic noise. CLM allows iFLEX® lasers to operate with automatic power control feedback in all modes of operation; CW, digital-, analogue- and dual-mode modulation. iFLEX CLM maintains reliable power stability from 0.1–100% throughout the extended service life. For Free-Space or Flexible Fiber-optic Delivery Our modular kineFLEX single-mode, polarization-maintaining fiber optic delivery system option allows iFLEX-iRIS to be located remotely from the sample, in an easily accessible, safe location. The kineFLEX fiber delivery system provides additional spatial filtering of the laser output for almost perfect Gaussian beam quality. Now you can replace the laser source without time-consuming repositioning and alignment to the subject. FEATURES Highly stable output New First-in-class Closed-Loop Modulation Exceptional Power Stability Ultra-low periodic noise Extreme low RMS and peak-to-peak noise Integrated electronics & TEC control Wavelengths: 375 nm - 852 nm Power options up to 220 mW Output Beam 0.7 ± 0.2 mm
