Xenon illumination system X-Cite® Vitae vIRX

compact

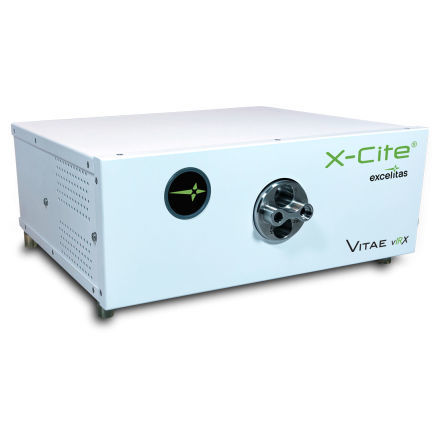

The X-Cite® Vitae vIRX is a fully customizable, multi-wavelength illumination platform designed for high precision medical illumination and diagnostic applications such as endoscopy and surgical visualization, as well as high-speed analytical applications including multi-well plate and slide scanning and polymerase chain reaction (PCR). Featuring high optical output with support for up to 7 wavelengths including NIR, the Vitae vIRX easily replaces 180W or 300W Xenon sources while offering state of the art capabilities. The X-Cite Vitae vIRX provides enhanced control, accurate tuning, and exceptional optical stability achieved via integrated feedback sensors. Match any CCT with individual RGB control, and maintain color balance over lifetime while ensuring color uniformity across large field-of-views. FEATURES Precision tuning: Match any CCT and achieve high CRI High optical power: Replace traditional xenon lamps UV and NIR options: Excite contrast fluorophores used in surgery Optical stability: Maintain consistent output over time Fully customizable: Achieve customer and application requirements SPECIFICATIONS Output - Four way universal turret accepting Storz, Wolf, ACMI and Olympus ferrules. Customized optical couplings also available. Wavelengths - Fully customizable upon request. Support for 7 individually controllable channels. Default configuration as follows: Minimum Pulse Width - 10 µs Control Options - Manual on/off and intensity control – 1% increments for each color; USB, TTL I/O Connectivity - TTL – input for on/off control: 2.4V – 5V TTL compatibility Ethernet, USB, SD card slot
