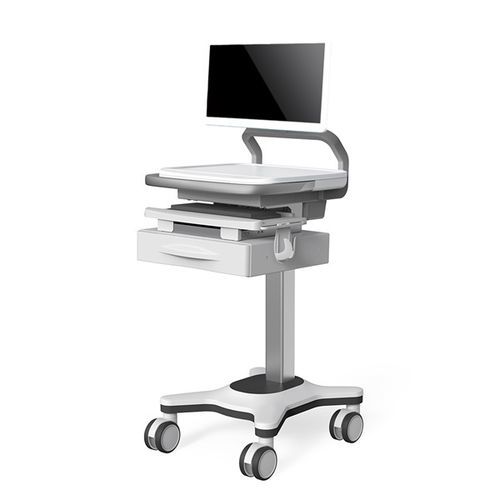

Panel PC computer cart FG-H-01

point-of-carebattery-poweredwith drawer

Product overview
Mobile medical workstation FG-H-01 with electric height adjustment and steel + ABS composite structure. Delivered pre-assembled; functions and sizes customizable.

Model
Model number: FG-H-01

Key advantages

• Electric height-adjustable system for ergonomic working heights
• Steel plate + ABS composite structure for rigidity and easy disinfection
• Rotating support arm with dual-axis adjustment
• Silent brake casters for safe, low-noise mobility
• Large-capacity drawer for consumables and small tools
• Pre-assembled, configurable for clinical workflows

Product performance

• Electric lifting: tabletop height 830–1320 mm; overall cart height 1310–1800 mm ±30 mm; stepless adjustment
• Support arm: length 50 mm; vertical rotation 0–90°; horizontal rotation ±90°; rated 5 kg
• Desktop size: 470 × 465 mm
• Keyboard tray: 449 × 257 mm
• Drawer (internal): 441 × 396 × 95 mm; rated 3.5 kg
• Material: steel plate + ABS composite — high rigidity, impact-resistant, easy to clean and disinfect
• Casters: 4" medical silent casters (reinforced nylon + TPE) with brakes
• Maximum load: 20 kg (excluding computer); net weight: 39 kg (excluding computer)
• Pre-assembled; functions and sizes fully customizable

Dimensions

• Overall height: 1310–1800 mm ±30 mm
• Tabletop height from floor: 830–1320 mm
• Base height: 208 mm
• Packing size: 710 × 590 × 1090 mm
• Base footprint: 457 × 515 mm

Application scenarios

• Suitable for hospital wards, ICU/CCU, nurse stations, clinics, rehabilitation areas and smart wards
• Use cases: mobile ward rounds, electronic medical record input, bedside order execution and medical device control

Selling point

• Designed for mobile clinical workflows: electric height adjustment, brake casters and medical-grade materials suitable for disinfection and bedside operations

Technical specifications

• Model: FG-H-01
• Electric lifting table height range: 830–1320 mm
• Overall cart height range: 1310–1800 mm ±30 mm
• Support arm: length 50 mm; rotation vertical 0–90°; horizontal ±90°; load 5 kg
• Desktop: 470 × 465 mm
• Keyboard tray: 449 × 257 mm
• Drawer internal size: 441 × 396 × 95 mm; drawer load 3.5 kg
• Max load (excluding computer): 20 kg
• Net weight (excluding computer): 39 kg
• Base height: 208 mm
• Packing size: 710 × 590 × 1090 mm
• Base footprint: 457 × 515 mm
• Material: steel plate + ABS composite
• Casters: 4" reinforced nylon + TPE medical silent casters with brakes
• Configuration: pre-assembled; accessories and sizes customizable
• Optional integrated PC (reference): 21.5" FHD display, Intel 7th Gen Core i5, 8GB RAM, 256GB SSD, USB×6, WiFi/Bluetooth, optional 20000mAh battery
