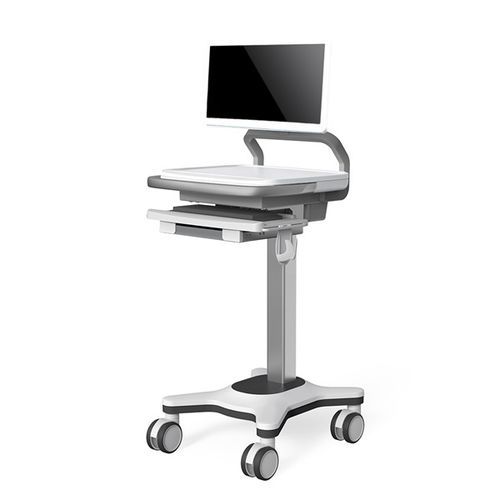

Point-of-care computer cart FG-H-02

for panel PCaccessoriesheight-adjustable

Product Overview
FG-H-02 medical workstation on wheels designed for mobile clinical tasks; electric height-adjustable cart with hidden keyboard tray and dual-rotation support arm, pre-assembled and configurable.

Key Advantages

• Electric height-adjustable system: table 830–1320 mm, overall cart 1310–1800 mm ±30 mm, stepless adjustment.
• Steel plate + ABS composite structure for rigidity, impact resistance and easy cleaning/disinfection.
• Dual-rotation support arm and hidden keyboard tray for compact, flexible operation.
• 4-inch medical silent casters (reinforced nylon + TPE) with brakes on all wheels for stable, quiet mobility.
• Delivered pre-assembled; compatible with optional accessories for department-specific configuration.

Performance & Configuration

• Electric lifting system: table height 830–1320 mm; cart height 1310–1800 mm ±30 mm; smooth, energy-saving operation.
• Support arm: 50 mm length; vertical 0–90°; horizontal ±90° for flexible screen positioning.
• Desktop: 470 × 465 mm; hidden keyboard tray: 449 × 257 mm; ergonomic layout for EMR entry and bedside work.
• Construction: steel plate + ABS composite.
• Casters: Φ100 mm medical silent casters, reinforced nylon + TPE, four wheels with brakes.
• Maximum load: 20 kg (excluding computer); net weight: 39 kg (excluding computer).

Dimensions

• Overall height: 1310–1800 mm ±30 mm.
• Table height from floor: 830–1320 mm.
• Base height: 208 mm.
• Base size: 457 × 515 mm.
• Packing size: 710 × 590 × 1090 mm.

Application Scenarios
Suitable for hospital wards, ICU/CCU, nurse stations, clinics, rehabilitation wards and smart wards; supports mobile ward rounds, electronic medical record input, bedside order execution and medical equipment control.

Recommended Accessories

• Optional accessories: scanner holder, printer shelf, infusion hook, sample tray; configurable per department needs.
• Recommended device: medical all-in-one PC (e.g. FG-H-14) compatible with VESA 100×100 mm.

Packaging & Installation

• Delivered pre-assembled in compact packaging (710 × 590 × 1090 mm) for transport efficiency.
• Ready to use after unpacking; no on-site assembly required, reducing installation time.

Usage Notes

• Observe maximum load of 20 kg (excluding computer) when fitting additional equipment; verify load distribution.
• Clean and disinfect casters and surfaces regularly according to facility protocols.

Technical Specifications

• Model: FG-H-02
• Table height: 830–1320 mm (stepless)
• Overall height: 1310–1800 mm ±30 mm
• Base height: 208 mm
• Lifting method: electric
• Maximum load: 20 kg (excluding computer)
• Net weight: 39 kg (excluding computer)
• Packing size: 710 × 590 × 1090 mm
• Support arm: length 50 mm; vertical 0–90°; horizontal ±90°
• Desktop size: 470 × 465 mm
• Keyboard tray size: 449 × 257 mm
• Base size: 457 × 515 mm
• Casters: medical double-surface Φ100 mm reinforced nylon + TPE, four wheels with brakes
• Materials: desktop/keyboard tray/mouse tray/base steel plate + ABS composite
• Delivery: pre-assembled; accessory customization available
