Hospital trolley B04

medicalfor instrumentsfor medicine

Product overview

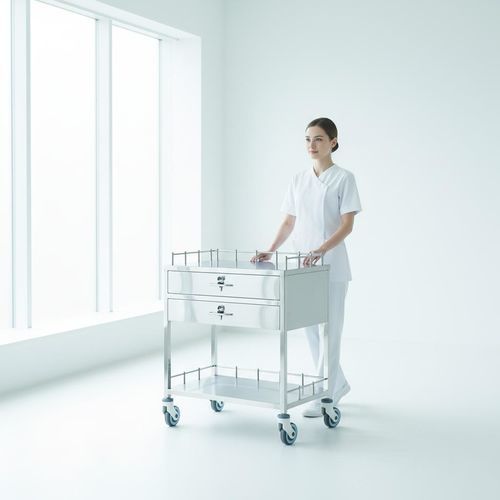

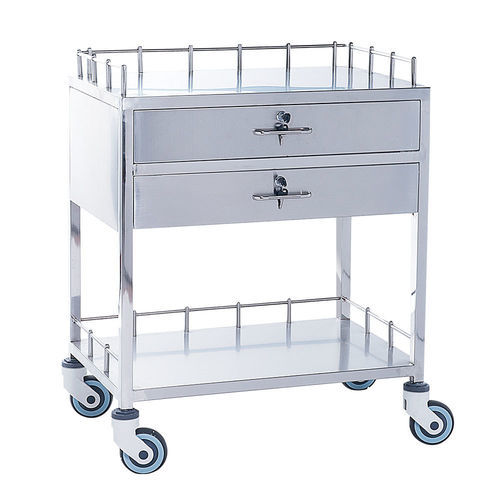

Compact hospital treatment trolley B04 in stainless steel designed for medicine distribution, nursing procedures and clinical instrument storage. Overall height includes casters; tabletop height and guardrail dimensions specified below.

Key features

• Stainless steel welded frame with polished finish for smooth, easy-to-disinfect surfaces
• Double-drawer layout with silent three-section slide rails for smooth, quiet operation
• Full anti-fall guardrail on top tabletop to secure items during movement
• Medical-grade silent casters with 360° swivel and dual-brake option
• Rounded, burr-free edges and no dead corners to facilitate hygiene

Drawers and drug box

• Two wide stainless steel drawers with reinforced support structure
• Three-section silent slide rails rated and tested for 18,000 cycles
• Optional ABS medication boxes available (48 compartments per layer)
• Drawer lock option for secure storage of medicines

Construction and support

• Frame: welded stainless steel with thickened steel plate and support tubes under each shelf
• Guardrail: solid stainless steel posts Φ12mm and crossbars Φ8mm
• Top panel thickness and load capacity designed for frequent clinical use
• Finish: corrosion- and scratch-resistant polishing

Casters and mobility

• Medical-grade TPR wheels, diameter 100mm, industrial nylon frame, high-precision deep-groove bearings
• Dual-brake casters for secure parking; factory‑fitted and quality‑checked before shipment
• Smooth, low-noise movement suitable for ward and clinical environments

Dimensions & technical specifications

• Model: B04
• Overall dimensions (L×W×H): 700 × 450 × 868 mm
• Top tabletop height from floor: 800 mm
• Guardrail height: 62 mm
• Drawer height: 110 mm
• Top panel thickness: 0.81 mm; top load capacity: 40 kg
• Main materials: stainless steel tubing ≥1.0 mm and original stainless steel plate
• Drawer slides: 1.2/1.2/1.5 mm three-section silent rails
• Caster warranty: 5 years

Applications

• Designed for hospital wards, nursing stations, pharmacy departments and clinical care areas for medicine distribution, procedural support and instrument storage
• Used where frequent cleaning, hygiene and safe transport of medical items are required

Packaging & quality control

• Fully assembled with factory‑fitted casters; packed in reinforced cardboard for safe transport
• Welding performed with 304 welding wire and polished to provide smooth, uniform seams

Optional configuration

• 48-compartment ABS medication boxes per layer (optional)
