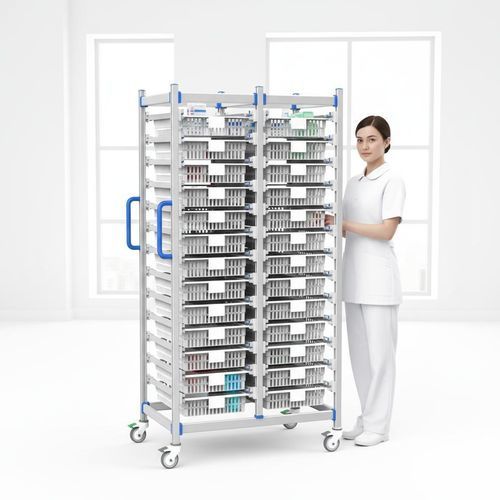

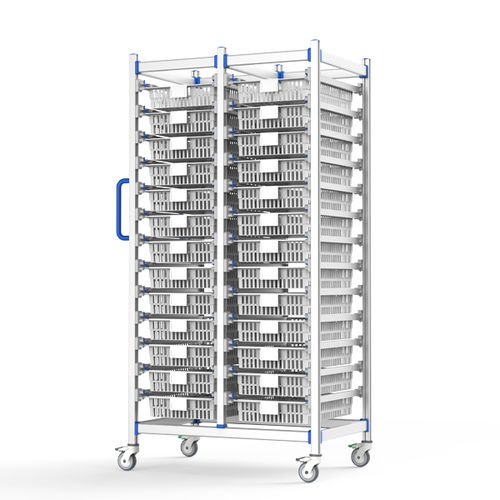

Medical instruments rack FG-PW-4013F02

storagemodularmobile

Seeking global distributors. OEM & ODM services available.

Medical-grade anodized aluminum frame with silent mobility system. Features 360° self-correcting wheels, modular ISO baskets, anti-bacterial surfaces, and height-adjustable push handle. Customizable for global healthcare workflows.

Product Performance:
• High-strength anodized aluminum frame
• Non-porous medical-grade corrosion resistance
• ABS injection-molded impact-resistant joints
• ISO 600×400mm ventilated modular baskets
• Adjustable dividers for consumables storage
• Dual-direction sliding label frames (58×90mm/42×65mm)
• 2° tilted slide-out mechanism with wheels
• Shallow basket: 100mm height
• Stainless steel height-adjustable push handle
• φ100mm silent dual-brake medical casters

Dimensions:
• Overall dimensions: 985×628×2000mm
• Push handle length: 1068mm
• Caster diameter: 100mm
• Shallow basket height: 100mm
• Label frames: 58×90mm (external), 42×65mm (internal)

Application Scenarios :
Designed for mobile storage in hospitals, clinics, and ERs. Enables quiet, smooth transfers of surgical tools, medications, and disposables between wards. Anti-vibration casters and self-leveling features ensure stability on uneven floors.
