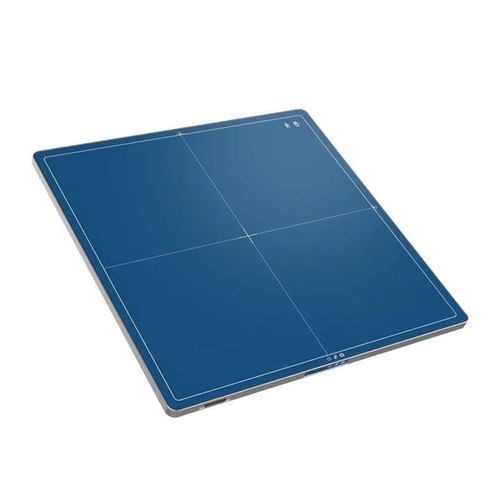

Veterinary radiography flat panel detector FTLV17CE

for multipurpose radiography17 x 17

Product Introduction
Engineered for hospitals, diagnostic centers, and veterinary clinics seeking a reliable wired flat panel detector for digital radiography, the FTLV17CE combines high image performance with proven durability. Suitable for upgrading CR systems to DR, it supports fast workflows and consistent diagnostic results.

Key Features & Benefits

• Advanced CsI Scintillator + a-Si TFT Technology: Delivers clear images with a DQE of 0.48 and MTF of 0.69 at 1 lp/mm, enabling detailed visualization even at low dose levels.
• High Resolution & Large Active Area: 140 μm pixel pitch, 3072×3072 pixel matrix, and 433.2 × 433.2 mm active area for full-size radiographic coverage.
• 16-Bit AD Conversion & High Sensitivity: 574 LSB/μGy sensitivity and up to 88 μGy maximum linear dose for wide dynamic range and strong contrast performance.
• Ultra-Fast Wired Performance: 3-second image acquisition and 14.5-second cycle time via high-speed 1 Gbps Ethernet, improving throughput in clinical environments.
• Low Lag & Automatic Exposure Detection (AED): < 0.5% lag after 60 s and integrated AED for reliable exposure synchronization.
• Robust & Lightweight Design: Slim 15 mm profile and 3.6 kg weight; withstands 150 kg uniform load, 100 kg local load, and drops up to 70 cm for daily clinical use.
• Wide Compatibility: Supports 40–150 kVp energy range, suitable for general radiography, trauma, and veterinary imaging.

Technical Specifications

• Model: FTLV17CE (17×17)
• Scintillator: Cesium Iodide (CsI)
• Limiting Resolution: 3.57 lp/mm
• Pixel Size: 140 μm
• Pixel Matrix: 3072 × 3072
• Active Area: 433.2 × 433.2 mm
• AD Conversion: 16-bit
• Sensitivity: 574 LSB/μGy
• Maximum Linear Dose: up to 88 μGy
• Image Transfer: High-speed wired (1 Gbps Ethernet)
• Image Acquisition Time: 3 seconds
• Cycle Time: 14.5 seconds
• Low Lag: < 0.5% after 60 s
• Automatic Exposure Detection (AED): Integrated
• Dimensions: 460 × 460 × 15 mm (ISO 4090 compliant)
• Weight: 3.6 kg
• Operating Temperature: 10°C ~ 35°C
• Certifications: ISO 4090 compliant

Overview / Additional Notes
The FTLV17CE 17×17 wired flat panel detector is a high-performance DR solution designed to deliver reliable image quality, fast acquisition, and durable operation for medical and veterinary X-ray applications. Ideal for facilities transitioning from CR to advanced digital radiography.
