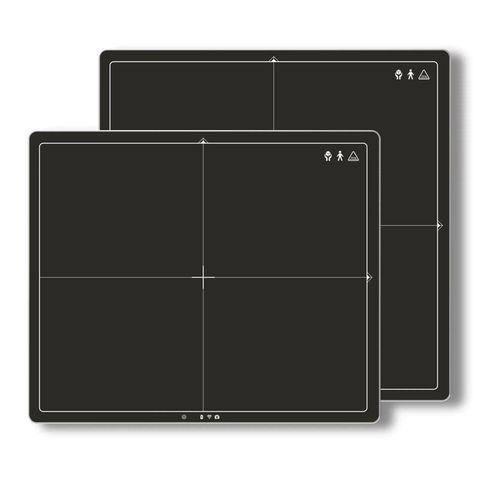

Veterinary radiography flat panel detector FTLV14C/FTLV17C

for multipurpose radiographywirelesswaterproof

Product Introduction
The FTLV14C (14×17) and FTLV17C (17×17) wireless flat panel detectors provide mobile-ready digital radiography capability with CsI scintillator and a‑Si TFT readout. Lightweight and rugged, they support rapid DR upgrades for hospitals, clinics, emergency and veterinary environments requiring cable-free operation and consistent image quality.

Key Features & Benefits

• Superior Image Quality: 140 µm pixel pitch, 16‑bit A/D conversion, DQE 0.48 and MTF 0.69 (at 1 lp/mm) for clear detail, strong contrast and low noise at clinical dose levels.
• Two Size Options:
• FTLV14C (14×17): 2500 × 3052 pixel matrix; active area 350 × 427.3 mm — suited for portable and extremity imaging.
• FTLV17C (17×17): 3072 × 3072 pixel matrix; active area 433.2 × 433.2 mm — full‑size detector for general radiography and large‑field exams.
• High‑Speed Wireless Performance: Supports 802.11 ax/ac/n/a/g Wi‑Fi with ~3 s image acquisition and 13.5 s cycle time; 1 Gbps Ethernet wired backup for integrated workflows.
• Smart Features:
• Automatic Exposure Detection (AED)
• Software synchronization
• NFC pairing
• AP mode (2.4 GHz & 5 GHz)
• IPX6 ingress protection (waterproof and dustproof)
• Durable & Lightweight: FTLV14C weight 2.7 kg; FTLV17C weight 3.2 kg. Withstands 300 kg local load (FTLV14C) and tested 70 cm drop resistance. Slim 15 mm profile (ISO 4090 compliant).
• Long Battery Life: Up to 4 hours in active use and up to 8 hours in standby.
• Wide Compatibility: Energy range 40–150 kVp; compatible with human medical and veterinary digital X‑ray systems.

Applications

• Mobile radiography and bedside imaging
• Emergency departments
• Operating rooms and interventional suites
• Veterinary clinics
• High‑throughput imaging centers requiring reliable wireless detectors

Technical specifications

• Active Area — FTLV14C: 350 × 427.3 mm; FTLV17C: 433.2 × 433.2 mm
• Pixel Matrix — FTLV14C: 2500 × 3052; FTLV17C: 3072 × 3072
• Pixel Pitch — 140 µm
• AD Conversion — 16‑bit
• Detective Quantum Efficiency (DQE) — 0.48
• Modulation Transfer Function (MTF) — 0.69 at 1 lp/mm
• Dimensions — FTLV14C: 383 × 460 × 15 mm; FTLV17C: 460 × 460 × 15 mm
• Weight — FTLV14C: 2.7 kg; FTLV17C: 3.2 kg
• Limiting Resolution — 3.57 lp/mm (both models)
• Image Transfer — Wireless + Wired (1 Gbps Ethernet backup)
• Battery Autonomy — 4 h normal use / 8 h standby (both models)
• Ingress Protection — IPX6 (both models)
• Energy Range — 40–150 kVp
• Durability — 300 kg local load (FTLV14C); 70 cm drop resistance
• Slim Design — 15 mm thickness (ISO 4090 compliant)
