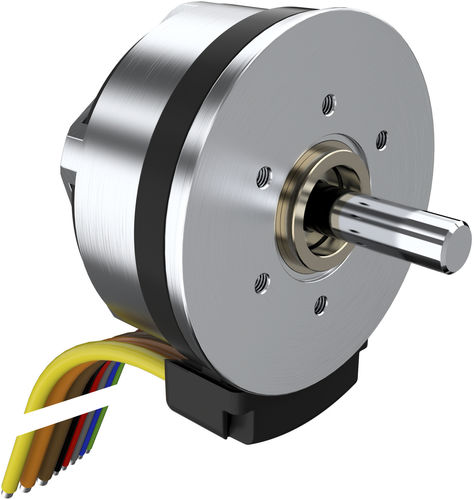

Medical industry motor 3216W0 series
brushlessDC

medical industry motor
medical industry motor
medical industry motor
medical industry motor
Add to favorites
Compare this product


Characteristics

Applications
medical industry
Operational mode
brushless
Current type
DC
Power

30 W
(0.041 hp)

Rotational speed

6,020 rad.min-1, 6,200 rad.min-1, 6,240 rad.min-1
(958.11 rpm, 986.76 rpm, 993.13 rpm)

Description

External rotor technology, without housing Nominal voltage: - 9 ... 24 V Continuous torque: - 41 mNm Continuous output: - 30 W Speed up to: - 10.000 min⁻¹ No-load speed: - 6.240 min⁻¹ Torque up to (max.): - 41 mNm Diameter: - 32 mm Length: - 16 mm
