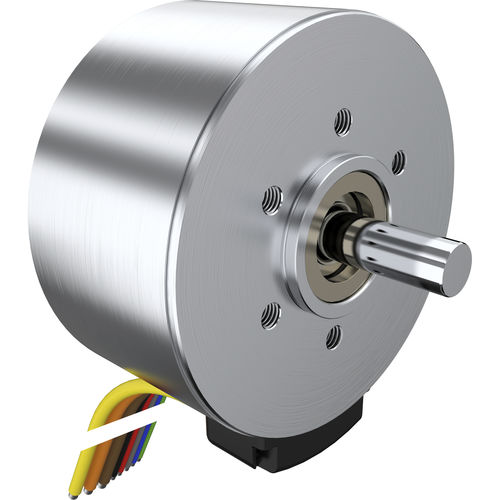

Medical industry motor 4221G0 seriesbrushlessDC
Add to favorites
Compare this product
Characteristics
- Applications
- medical industry
- Operational mode
- brushless
- Current type
- DC
- Power
60 W
(0.082 hp)- Rotational speed
5,710 rad.min-1, 6,040 rad.min-1, 6,070 rad.min-1
(908.77 rpm, 961.3 rpm, 966.07 rpm)
Description
External rotor technology, with housing
Nominal voltage: - 18 ... 48 V
Continuous torque: - 112 mNm
Continuous output: - 60 W
Speed up to: - 10.000 min⁻¹
No-load speed: - 6.070 min⁻¹
Torque up to (max.): - 112 mNm
Diameter: - 42 mm
Length: - 22 mm
