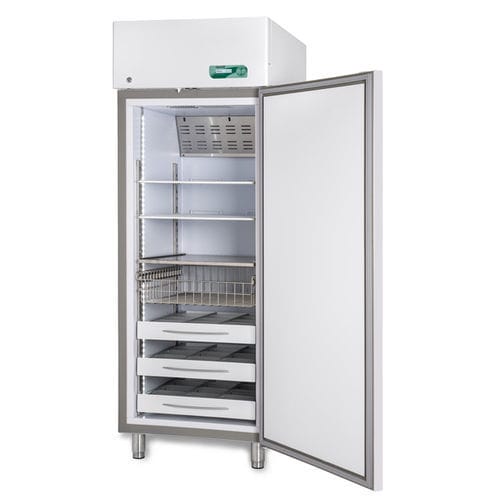

Laboratory refrigerator ANTISCINTILLE 700 ECT-F

cabinetupright1-door

Description
Large-capacity laboratory refrigerator designed without internal electrical contacts in the storage compartment, suitable for chemical and industrial laboratory use. The unit preserves reagents and chemicals that must not contact electrical parts.

Category
Laboratory refrigerator with blind (solid) door. The ANTISCINTILLE series features a clean, functional design with adjustable compartments for optimized storage. The blind door provides enhanced thermal insulation; the full-length recessed anodized aluminium handle ensures safe handling. A magnetic gasket on all four sides guarantees optimal sealing. The door has automatic return spring closure with a 90° hold-open and reversible opening direction.

Main data
Code: Cod. ANT0701
Temperature range: +2 / +15°C
Net capacity: 620 L (21.89 cu ft)
Nominal capacity: 700 L (24.72 cu ft)
External dimensions (W×D×H): 75 × 82.5 × 210 cm
Internal dimensions (W×D×H): 60 × 68 × 150 cm
Electronics type: ECT-F

Structure and refrigeration
Insulation: injected high-density polyurethane (43 kg/m3), CFC-free with ecological water injection.
Insulation thickness: 75 mm.
Structure: single-shell construction in white non-toxic plastified steel internal/external with certified antibacterial treatment, or interior in AISI 304 18/10 stainless steel. Rounded corners and sump bottom.
4 height-adjustable feet for maximum stability.
Refrigeration type: professional forced-air (ventilated).
Defrost type: automatic adaptive defrost with condensate evaporation.

Electronic controller ECT-F
Temperature display and setting with 0.1°C resolution; accuracy ±0.3°C. 16-character alphanumeric backlit LCD, configurable in 5 languages. 4 membrane keys provide clear user interaction and status indications.
Display configurable in four reading modes.
Keyboard: 4 membrane keys; customizable password to protect power on/off and set-point changes.
Alarms: temperature alarms and event logging (event log up to 12 events).

Technical data
Refrigerant gas: R290
Consumption: 1 kWh/24h
Power input / Current: 0.12 kW / 0.7 A
Starting current: 2.5 A
Noise level: 50 dBA
Heat emitted (EN 12900): 40 W
Max number of shelves: 7
Shelf dimensions: 56 × 65 cm
Max number of drawers: 14
Internal drawer (with dividers) (W×D×H) (x n.spaces): 15 × 60 × 7.5 cm (3)
Internal drawer without dividers (W×D×H): 49 × 60 × 7.5 cm
Max number of wire baskets: 7
Wire basket internal dimensions (W×D×H): 53.8 × 60.5 × 14.8 cm
Max number of wire drawers: 14
Wire drawer internal dimensions (W×D×H): 53.8 × 60.5 × 6.2 cm

Accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelf for models 700–1500
• Stainless steel shelf for models 700–1500
• Wire rack 14 × 50 × 15 cm (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 700–1500
• Sliding aluminium drawer without dividers for models 700–1500
• Front plexiglass riser for drawer
• Sliding wire basket
• Sliding wire drawer on guides for models 700–1500
• Drawer with lock for narcotics
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packaging

Characteristics / technical specifications

• Model: ANTISCINTILLE 700 ECT-F
• Brand: Fiocchetti
• Product code: ANT0701
• Nominal capacity: 700 L (24.72 cu ft)
• Net capacity: 620 L (21.89 cu ft)
• Temperature range: +2 / +15°C
• External dimensions (W×D×H): 75 × 82.5 × 210 cm
• Internal dimensions (W×D×H): 60 × 68 × 150 cm
• Insulation type: injected polyurethane (43 kg/m3), CFC-free
• Insulation thickness: 75 mm
• Structure: white non-toxic plastified steel internal/external or internal AISI 304 18/10 stainless steel (rounded corners, sump bottom)
• Feet: 4 height-adjustable
• Refrigeration type: professional ventilated
• Defrost type: automatic adaptive (condensate evaporation)
• Controller: ECT-F, 16-character alphanumeric LCD, resolution 0.1°C, accuracy ±0.3°C, 4 membrane keys, alarms and event log
• Refrigerant gas: R290
• Consumption: 1 kWh/24h
• Power input: 0.12 kW
• Nominal current: 0.7 A
• Starting current: 2.5 A
• Noise: 50 dBA
• Heat emitted EN 12900: 40 W
• Max shelves: 7 (56 × 65 cm)
• Max drawers: 14
• Drawer with dividers internal size: 15 × 60 × 7.5 cm (3 spaces)
• Drawer without dividers internal size: 49 × 60 × 7.5 cm
• Max wire baskets: 7 (53.8 × 60.5 × 14.8 cm)
• Electronics type: ECT-F
