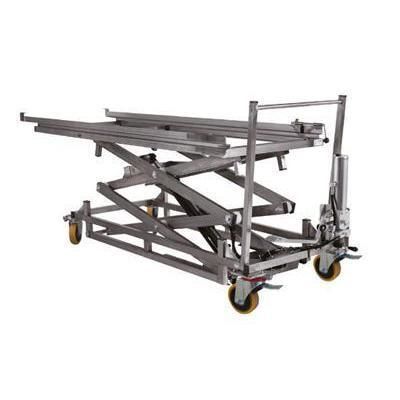

Mortuary stretcher trolley CRR010

hydraulicheight-adjustablestainless steel

Overview
Stainless-steel hydraulic lifting trolley designed for insertion and extraction of stretchers in mortuary chambers.

Details
AISI 304 stainless-steel frame with a double scissor lifting chassis.
Hydraulic lifting system operated by a foot pump.
Flow regulator for controlled descent to prevent rapid lowering and reduce risk of operator injury.
Support platform fitted with rollers to position the stretcher (stretcher not included).
The trolley is equipped with locks to secure the stretcher, an ergonomic push handle and front anti-collision bumpers.
Two swivel wheels and two free-running wheels.
Maximum load: 220 kg.

Conformity
The supplied equipment complies with UNI EN ISO 12100/1 – 12100/2, UNI EN ISO 954-1, UNI EN ISO 349:2008 and subsequent amendments.

FEATURES / TECHNICAL SPECIFICATIONS

• Product name (page text): Hydraulic trolley with rollers
• Product code: CRR010
• External dimensions (LxWxH) reported: 180 x 69 x 31/177
• Overall dimensions (LxWxH) reported: 187 x 69 x 31/177 cm
• Frame material: AISI 304 stainless steel
• Chassis: Double scissor lifting chassis
• Lifting system: Foot-operated hydraulic pump
• Adjustment: Flow regulator for controlled descent
• Support platform: Equipped with rollers for stretcher positioning (stretcher not included)
• Safety: Locks to secure the stretcher, front anti-collision bumpers
• Handle: Ergonomic push handle
• Wheels: 2 swivel wheels and 2 free-running wheels
• Declared maximum load: 220 kg
• Packaging: Cage packaging (indicated on the sheet)
• Standards: Compliant with UNI EN ISO 12100/1 – 12100/2, UNI EN ISO 954-1, UNI EN ISO 349:2008
