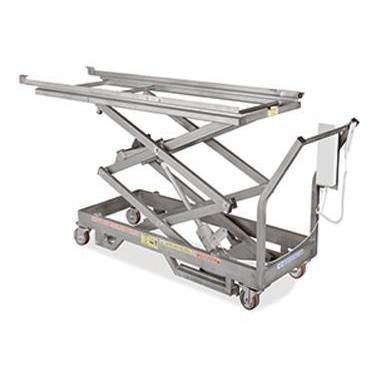

Lifting mortuary trolley CRR013

handlingtransferelectric

Description
Electric stainless-steel lifting trolley designed for insertion and extraction of stretchers from mortuary chambers. Double-scissor lifting frame with electrically driven system and manual actuation. 24V lead-acid battery with safety switch and charger included. Flow regulator prevents rapid descent of the load. Support platform equipped with rollers to position the stretcher (stretcher not included). Ergonomic push handle, front anti-impact bumpers and stretcher safety locks. Two swivel wheels and two free-running wheels. Load capacity: 175 kg.

Details
Stainless steel AISI 304 structure with double-scissor lifting frame. Electric lifting mechanism controlled manually; designed for safe handling and precise positioning of mortuary stretchers. Compact footprint for manoeuvring in mortuary chamber doors and corridors.

Compliance
The equipment complies with UNI EN ISO 12100/1 – 12100/2, UNI EN ISO 954-1, UNI EN ISO 349:2008 and subsequent amendments.

FEATURES / TECHNICAL SPECIFICATIONS

• Name: Electric lifting trolley with rollers
• External dimensions (LxWxH): 206 x 69 x 38.5 / 201.5 cm
• Structure: stainless steel AISI 304 with double-scissor lifting frame
• Lifting system: electric (manual actuation)
• Battery: 24 V lead-acid; safety switch and charger included
• Flow regulator: present (prevents rapid load descent)
• Support platform: fitted with rollers for stretcher positioning (stretcher not included)
• Safety: stretcher locking devices; front anti-impact bumpers; ergonomic push handle
• Wheels: 2 swivel wheels and 2 free-running wheels
• Load capacity: 175 kg
• Standards: compliant with UNI EN ISO 12100/1 – 12100/2, UNI EN ISO 954-1, UNI EN ISO 349:2008 and amendments
