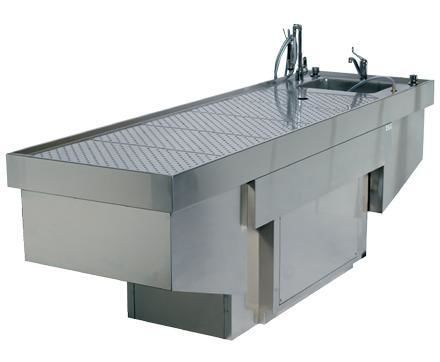

Histopathology laboratory autopsy table Tavolo autopsia B

for forensicsdissectionmortuary washing

Short description
Professional autopsy table with suction system. The range of autopsy tables is designed to meet diverse requirements for handling cadavers; models can be customized with various accessories and are intended for Forensic Medicine, Pathological Anatomy, clinical research, mortuary services, morgues and cemeteries.

Product code
Code TVA013

Structure and functionality
Reinforced, shaped structure entirely made of AISI 304 stainless steel. Worktop with perimeter rim inclined to contain liquids, without sharp edges and with slopes for easy drainage of water toward the drain. Central stainless steel frame suitably reinforced to bear the load, equipped with removable panels to allow access to internal water and electrical connections and, if provided, to the suction unit and filtration systems. All electrical connections and provisions are protected with a minimum insulation rating of IP54; for external and more exposed connections the insulation rating is IP65. Fixed CEE plug socket mounted on the wall is provided.

Operating top
Equipped with 5 removable perforated shelves on the upper part that allow support of the body, drainage of liquids and extraction of exhaust air directly from the top.

Included

• Full-surface irrigation system via water ejectors positioned on the side opposite the drain
• Electric macerator-dissipator for crushing and disposal of residues
• Hydro liquid-vacuum unit

Notes on page dimensions
External dimensions (LxWxH): 280 x 85 x 85 cm
Overall dimensions (LxWxH): 260x5x85 cm
(the page content reports both entries as specified in the source)

Technical data
Voltage: 230V/1~/50Hz
Steel tank dimensions: mm 400 (L) x 250 (W) x 500 (H)
Max load: 250 kg

Characteristics / technical specifications

• Material: AISI 304 stainless steel
• Structure: reinforced and shaped, inclined worktop with perimeter rim, without sharp edges
• Slopes for water drainage toward the drain
• 5 removable perforated shelves on the upper worktop for body support, liquid drainage and exhaust air extraction
• Internal electrical provisions protected: minimum insulation rating IP54
• External and more exposed provisions: insulation rating IP65
• Fixed CEE plug socket mounted on the wall
• Included: full-surface irrigation system (ejectors), electric macerator-dissipator, hydro liquid-vacuum unit
• Voltage: 230V/1~/50Hz
• Tank dimensions: 400 x 250 x 500 mm (L x W x H)
• Maximum load: 250 kg
• Applications: Forensic Medicine, Pathological Anatomy, clinical research, mortuary services, morgues, cemeteries
