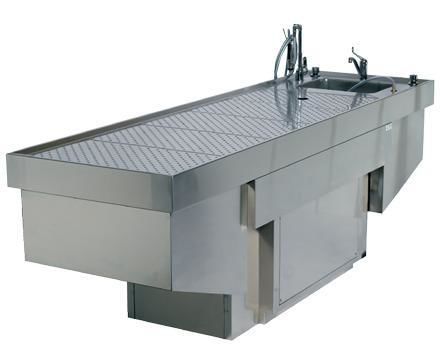

Forensic autopsy table Tavolo autopsia B

laboratoryfor histopathology laboratoriesmortuary washing

Description
The range of autopsy tables is designed for the various needs of handling cadavers in medico-legal, pathology and clinical research facilities as well as mortuary and cemetery services. The height-adjustable autopsy table mod. B adapts to post-mortem examinations and procedures. Constructed in AISI 304 stainless steel, it features a reinforced, shaped frame and a perimeter-edged sloping work surface to contain fluids and direct drainage without sharp edges.

Main features

• External dimensions (LxWxH): 280 x 85 x 85/110 cm
• Structure: fully AISI 304 stainless steel; reinforced shaped frame; sloping perimeter-edged top to contain fluids; no sharp edges; slopes to guide liquids toward the drain
• Five removable perforated trays on the upper surface: support the body, allow liquid drainage and enable exhausted-air extraction directly from the work surface
• Integrated sink with hot/cold mixer operated by elbow; extendable wash hand spray covering the full surface
• Liquid drain protected by overflow controlled via magnetic probe
• Included accessories:
  • full-surface irrigation system using water ejectors opposite the drain
  • electric macerator-dissipator for grinding and disposal of residues
  • hydro-vacuum liquid extractor

Technical data
Voltage: 230 V / 1~ / 50 Hz
Adjustable height: 850–1100 mm
Stainless steel basin dimensions: 400 mm (L) x 250 mm (W) x 500 mm (H)
Maximum load: 250 kg

Notes
Unit designed for customization and integration with specific accessories for use in forensic pathology labs, anatomical pathology, mortuary services and clinical research facilities.

Characteristics / Technical specifications

• Model name: Autopsy table B
• Product code: Cod. TVA009
• Material: AISI 304 stainless steel
• External dimensions (LxWxH): 280 x 85 x 85/110 cm
• Height adjustment: 850–1100 mm
• Stainless steel basin: 400 x 250 x 500 mm (LxWxH)
• Maximum load capacity: 250 kg
• Other equipment: 5 removable perforated trays, sink with mixer and hand spray, drain with magnetic probe overflow protection
• Standard accessories: full-surface irrigation system, electric macerator-dissipator, hydro-vacuum liquid extractor
