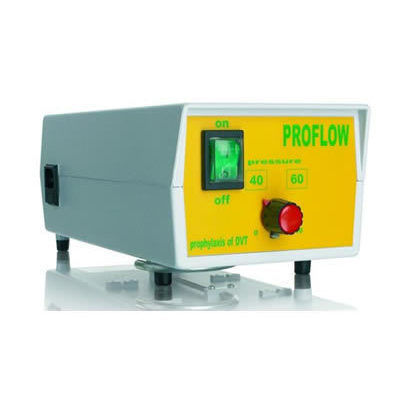

DVT prevention system FP 4 SSP PROFLOW

tabletop

Product

• Model: FP 4 SSP PROFLOW
• Brand: Fisiopress
• Category: Intermittent pneumatic compression device for DVT prophylaxis (medical)

Indications and clinical use

• Intended use: prophylaxis of deep vein thrombosis (DVT) in hospital and clinical settings
• Target area: lower limbs — sequential/intermittent compression
• Users: clinicians, perioperative teams, vascular and rehabilitation departments

System description and operating principle
The device uses a pump that generates a constant‑flow pressure wave with a programmed 120‑second cycle (typical split: 40 s compression — programmable — and 80 s decompression/rest). Pressure range programmable from 0 to 80 mmHg on one or two terminals simultaneously. The sequential cycle reproduces a distal‑to‑proximal thrust mechanism similar to walking (foot pump then calf pump) using terminals with separate foot and calf chambers.
Features include D.A.S.C. (Distribution by Communicating Sectors) for uniform chamber filling and compression, alternative under‑foot shoe terminals when calf application is not possible, and calf bands that leave the foot free for surgical use. Option to replace each internal pneumatic bag individually. Medical CE mark.

Therapeutic actions

• Prevention and reduction of venous stasis
• Increase of venous velocity
• Increase of venous flow
• Containment of venous dilation
• Reactivation of lymphatic flow and reabsorption of lymphatic edema
• Stimulation of local fibrinolytic activity
• Support/containment of the venous wall

Technical features / specifications

• Model: FP 4 SSP PROFLOW
• Operating cycle: 120 s (40 s compression programmable + 80 s decompression/rest)
• Programmable pressure range: 0–80 mmHg
• Two pneumodistension chambers per terminal (foot and calf) or under‑foot shoe alternative
• Two sequential outputs — can treat one or two limbs simultaneously
• D.A.S.C. system for uniform chamber distribution
• Replaceable internal pneumatic bags (individual replacement possible)
• Accessories / garments and connection sets: PROUB (base unit), PROGC2, PROGC2P, PROGL2, PROGL2P, 4tvpSD2, 4tvpSD1, 4tvpSP
• Certification: Medical CE mark
