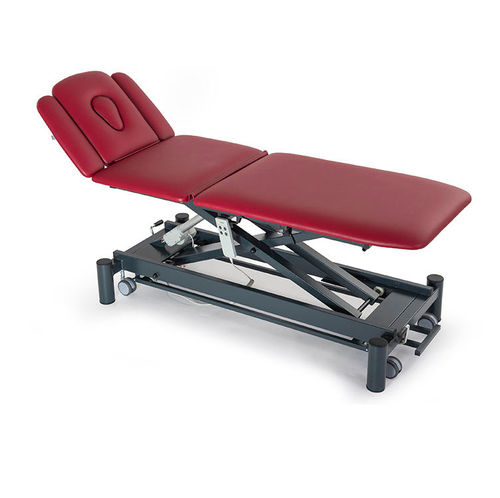

Electric massage table GIOVE5
hydraulicwith headrestwith armrests

electric massage table
electric massage table
electric massage table
electric massage table
electric massage table
electric massage table
electric massage table
electric massage table
electric massage table
electric massage table
Add to favorites
Compare this product


Characteristics

Operation
electric, hydraulic
Features
with headrest, with armrests, height-adjustable, on casters
Number of sections
3-section

Description

5-section professional couch for treatment, massage and examination. The height is adjusted electrically or hydraulically. The middle section is adjusted with a gas spring or with a second actuator (electrical versions only). The Top series couches have no lateral offset when adjusting their height, thus take up less space as far as length is concerned. Frame available in two colours: RAL 7016 anthracite grey or RAL 7035 light grey. TECHNICAL SPECIFICATIONS Dimensions of the upholstery: 200 x 65 cm Height adjustment: 49-95 cm Headrest adjustment with gas spring: + 70° - 40° Middle section adjustment with gas spring or electrically: + 20° Footrest adjustment with gas spring: + 85° Trendelenburg position: + 20° Breathing hole and bung: as standard Armrests adjustment: manual Max. working load: 200 kg Padding and upholstery fire-resistance rating: 1IM Padding density/thickness: 30 (kg/m3) / 40 mm VARIANTS AVAILABLE: - electrical with foot pedal code 118051 - electrical with all-around footswitch code 118052 - electrical with aluminium all-around footswitch code 118058 - hydraulic control code 118053 - electrical with 2 actuators, foot pedal code 118055 - electrical with 2 actuators, all-around footswitch code 118057 - electrical with 2 actuators, aluminium all-around footswitch code 118059

Catalogs

catalog 2019
catalog 2019
184 Pages
