4-section tilt table / therapy / electric / on casters
ULISSE

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product

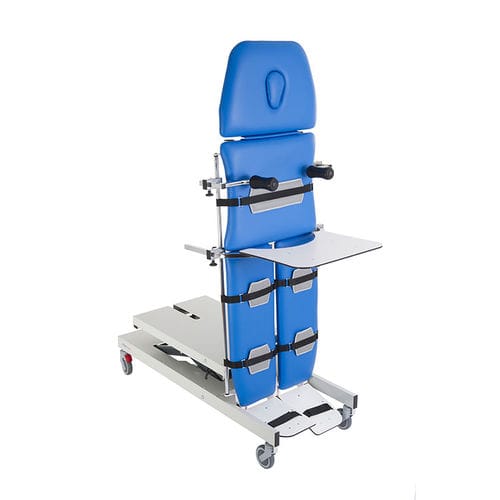

4-section tilt table 4-section tilt table - ULISSE
{{requestButtons}}

Characteristics

  • Number of sections:

    4-section

  • Other characteristics:

    therapy, electric, on casters, height-adjustable, quick-release

Description

4-section tilt table. Height adjustable between 54 and 96 cm. Electrically adjustable tilt angle from 0° to 90° with hand control. It is equipped with five safety straps, an adjustable headrest, and manually-adjustable independent footboards. Thanks to its structure, patient hoists can be placed under the couch.

TECHNICAL SPECIFICATIONS
Dimensions of the upholstery: 190 x 65 cm
Overall dimensions: 200 x 70 cm
Height: 54-96 cm
Under bed clearance: 15 cm
Tilt adjustment: 0°-90°
Headrest adjustment with gas spring: + 30° - 80°
Breathing hole and bung as standard
Max. working load: 150 kg
4 castors of which 2 locking, diameter 100 mm
5 safety straps
Independent footboards adjustment manual +20° -20°
Padding and upholstery fire-resistance rating: 1IM
Padding density/thickness: 30 (kg/m3) / 40 mm

VARIANTS AVAILABLE:
- electrical with hand control code 115064
