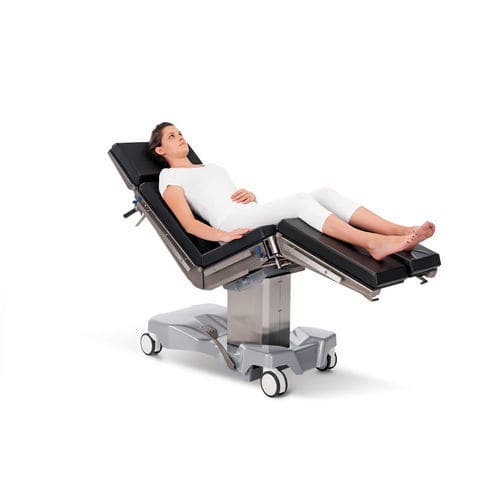

Universal operating table HIRO

radiologyhydraulicmechanical

Description
HIRO is a mechanically and hydraulically operated operating and treatment table designed for settings that require dependable, power‑independent adjustment and a wide range of patient positions. Intended for procedure rooms and certain operating theatres, HIRO combines a simple control concept with the main functions required for most surgical and procedural workflows.

Features

• Power‑independent operation: hydraulic height adjustment and mechanical controls operate without electrical power for use in locations with limited power availability.
• Mobility and stability: large 125 mm castors with directional wheel and central brake; stainless steel brake lever at head end for quick locking.
• Multiple patient positions: 4‑ and 5‑segment tops allow supine, semi‑sitting, Trendelenburg/reverse Trendelenburg, flexion/reflexion and other positions.
• X‑ray compatible design: built‑in tunnels under headrest, backrest and seat segments for cassette placement and compatibility with C‑arm imaging.

Key Features at a Glance

• Hydraulic height adjustment: 750–1050 mm (foot lever)
• Maximum load capacity: 230 kg
• Trendelenburg / Reverse‑Trendelenburg: -25° / 25°
• Backrest adjustment: -40° to 80° with lock
• Leg segment adjustment: 20° to 90°
• Optional lateral tilt: +/-20° via cranks
• 4‑ or 5‑segment table top configurations
• Integrated X‑ray tunnels under headrest, backrest and seat
• Removable, radiolucent, antistatic mattresses
• Gas spring–assisted levers for easy operation
• Easy segment exchange (headrest ↔ footrests) without screws
• Castors: 125 mm diameter (directional wheel with central brake)

Versatility / Options

• Choice of 4 or 5 segment table top
• Divided footrest or single leg plate
• With or without lateral tilt mechanism
• Optional kidney bridge
• Stainless steel base cover or ABS base cover
• Wide range of accessories available to expand functionality (orthopaedic attachments, traction equipment, IV poles, etc.)

Available Accessories

• TE-1: Multiposition clamp
• TE-2: IV pole
• TE-3: Hand rest
• TE-4: Anaesthetic frame
• TE-5: Gynaecological bowl
• TE-6: Angle arm rest
• TE-7: Side support
• TE-08: X-ray cassette holder
• TE-09: Knee rests
• TE-10: Orthopaedic attachment
• TE-11: Patient strap

Technical specifications

• Category: Procedural / Operating tables
• Model: HIRO
• Brand: Formed
• Height adjustment (hydraulic): 750–1050 mm (foot lever)
• Maximum load capacity: 230 kg
• Trendelenburg / Reverse‑Trendelenburg: -25° / 25°
• Backrest range: -40° to 80° (with lock)
• Leg segment range: 20° to 90°
• Optional lateral tilt: +/-20° (crank‑adjusted)
• Table top: 4‑ or 5‑segment configurations
• X‑ray: integrated tunnels under headrest, backrest and seat segments
• Mattresses: removable, radiolucent, antistatic
• Operation: hydraulic and mechanical controls (no mains power required)
• Castors: 125 mm diameter (directional wheel with central brake)
