Universal operating table HIPPO

gynecologicalmechanicaladjustable height

Product overview

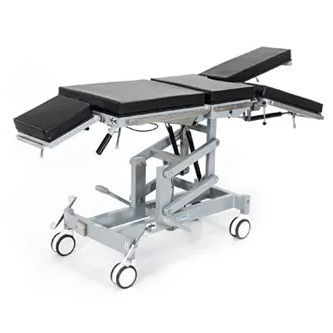

The Hipo table is a basic, functional mechanical treatment table designed for small operating rooms and treatment facilities. Its simple, hand- and foot-operated mechanisms allow dependable positioning without electrical power. With appropriate accessories the table can be adapted for specialised procedures such as gynaecology and proctology.

Design & operation
Mechanical table with hand and foot mechanisms. Pantograph-based lifting system provides reliable height adjustment and fast, tool-free changes while remaining independent of electrical supply.

Mobility & stability
Lightweight construction allows easy manoeuvring between rooms. Directional wheel improves tracking during movement and a central 3-position braking system (lock – directional wheel – unlocked) secures the table when required.

Patient positioning

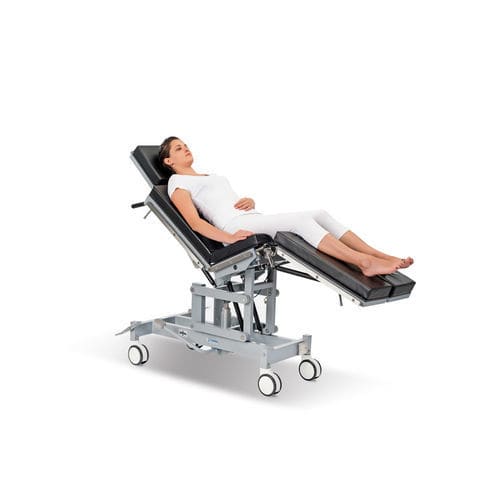

4-segment tabletop enabling multiple positions: semi-lying, lying, sitting, side positioning, Trendelenburg, reverse-Trendelenburg, flex and reflex positions. Headrest and backrest with locking mechanisms; adjustable leg segment and knob to move the leg rest aside.

Imaging & cleaning
X-ray translucent HPL pallet suitable for radiographic imaging. Soft, translucent mattresses are removable for cleaning and disinfection, facilitating infection control.

New function: Lateral Tilts
The optional lateral tilt function allows precise lateral positioning during procedures and provides benefits such as:

• Improved access to the surgical or treatment area
• Enhanced patient comfort in lateral positions
• Better ergonomics for the clinical team

Key features at a glance

• Headrest adjustment lever
• Backrest adjustment lever with lock
• Trendelenburg and reverse‑Trendelenburg with lock
• Height adjustment lever
• Knob for moving the leg rest aside
• Leg segment adjustment lever
• Central braking system (3 positions)
• Optional lateral tilt function
• Steel construction with epoxy‑polyester powder coating
• Optional OH18N9 stainless steel construction

Durable construction options
Steel profiles with epoxy‑polyester powder coating ensure resistance to mechanical damage, common disinfectants and UV exposure. OH18N9 stainless steel is available as an option for enhanced chemical and corrosion resistance.

Available accessories
Side rails accept the same accessory range as the HIRO table, including:

• TE-1: Multiposition clamp
• TE-2: IV pole
• TE-3: Hand rest
• TE-4: Anaesthetic frame
• TE-5: Gynaecological bowl
• TE-6: Angle arm rest
• TE-7: Side support
• TE-08: X-ray cassette holder
• TE-09: Knee rests
• TE-11: Patient strap

Technical specifications

• Model type: mechanical treatment table (no electrical drive)
• Lifting system: pantograph-based
• Adjustment mechanisms: hand and foot operated
• Table top: 4-segment design
• Supported positions: semi-lying, lying, sitting, side positioning, Trendelenburg, reverse-Trendelenburg, flex, reflex
• X-ray compatibility: X-ray translucent HPL pallet
• Mattress: soft, translucent, removable for cleaning/disinfection
• Mobility: directional wheel, central wheel lock (3-position central braking system)
• Construction: steel profiles with epoxy‑polyester powder coating; optional OH18N9 stainless steel
• Resistance: mechanical damage, disinfection agents, UV radiation
• Optional features: lateral tilt function and stainless steel OH18N9 construction
• Accessory interface: side rails compatible with listed TE accessories (same as HIRO table)
