Examination stretcher CAMEL

transportreverse Trendelenburgwith adjustable backrest

Product overview

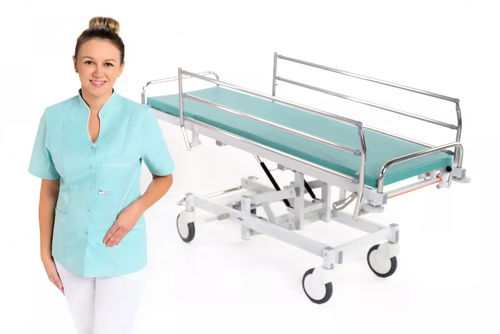

The Camel transport stretcher is designed for patient handling and short‑distance transport in clinical environments. It is available with 2‑segment or 4‑segment pallets and features stainless steel main accessories, a pantograph frame and an X‑ray translucent pallet suitable for diagnostic procedures.

Mobility
Large 200 mm diameter castors provide smooth manoeuvrability. The set includes one directional castor and a central braking system. An optional fifth wheel is available to improve turning radius in narrow corridors and rooms.

Materials and hygiene
Main components such as side rails, IV pole, push handles and adjustment lever are made of stainless steel for corrosion resistance and ease of disinfection. Steel sections are powder coated to resist UV, mechanical wear and common disinfectants.

Functionality and configurations
Camel is configurable with a 2‑segment or 4‑segment pallet. Depending on configuration it can be used for patient transport, basic examination or as a temporary bed. Backrest, Trendelenburg and Reverse Trendelenburg positions are available.

Standard equipment

• Pantograph frame construction
• 4 protective bumpers for impact protection
• 200 mm castors with central brake and one directional castor
• Push handles for manoeuvring
• Foldable stainless steel side rails
• Lever for hydraulic height adjustment
• X‑ray translucent pallet filled with HPL board
• Trendelenburg and Reverse Trendelenburg adjustment
• Stainless steel IV pole
• Backrest adjustment with gas springs
• Removable polyurethane foam mattress
• Non‑marking castors for floor protection

Adjustment mechanisms
Pallet height is adjusted via a foot‑controlled hydraulic pump. Backrest, Trendelenburg and Reverse Trendelenburg are adjusted by gas springs with locking. On the 4‑segment pallet the thigh segment is gas‑spring assisted and the shank segment uses a ratchet mechanism.

Options

• 2‑segment or 4‑segment pallet configurations
• Durable construction: powder‑coated steel sections resistant to UV, mechanical damage and disinfectants
• Wide range of upholstery: standard medical, antistatic and certified antiviral protection options
• Upholstery collections and customizable colours: SKADEN, Valencia, Silvertex

Optional accessories

• Reinforced mattress with carrying handles
• Wire basket for patient belongings
• Paper roll holder
• Oxygen cylinder holder mounted under the backrest
• Patient safety straps
• Cassette tunnel along full bed length
• ABS base covers (one option with shelf)
• Fifth wheel for enhanced manoeuvrability

Technical specifications

• Castors: 200 mm diameter; one directional castor and central brake; non‑marking
• Optional 5th wheel for improved manoeuvrability
• Main accessories: stainless steel (side rails, IV pole, push handles, adjustment lever)
• Pallet configurations: 2‑segment or 4‑segment (4‑segment includes thigh gas spring and shank ratchet)
• Pallet material: X‑ray translucent pallet filled with HPL board
• Height adjustment: foot‑controlled hydraulic pump
• Backrest: adjustment by gas springs with locking
• Construction: pantograph frame; steel sections with powder coating resistant to UV and disinfectants
• Mattress: removable polyurethane foam; reinforced mattress option available
• Upholstery options: standard medical, antistatic, certified antiviral protection; available in SKADEN, Valencia, Silvertex collections
