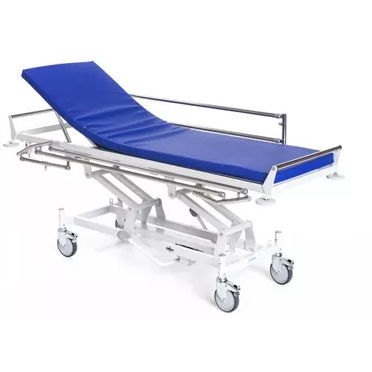

Transport stretcher trolley Lama

patient transferhydraulicwith adjustable backrest

Overview
The Lama patient transport stretcher provides a simple, lightweight solution for safe and efficient patient transfers with low acquisition and operating costs. The frame is built from steel profiles with a powder-coated finish resistant to UV, mechanical wear, disinfectants and cleaning agents. The lying surface is made from HPL board for enhanced durability and easy cleaning. A removable polyurethane-foam mattress covered with artificial leather facilitates hygiene and patient handling.

Standard Equipment Features

• Mechanically adjustable backrest segment (Rastomat)
• HPL board lying surface for durability and hygiene
• Removable polyurethane-foam mattress covered with artificial leather
• Stainless steel push handles
• Stainless steel side rails
• 4 bumpers for impact protection
• 4 castors, each with individual brake for secure positioning
• Pallet height adjusted by hydraulic pump
• Powder coating resistant to UV and disinfectants

Key Design Features

• Hydraulic height adjustment: pallet height set using a hydraulic pump to ensure optimal working height for transfers
• Mechanical backrest adjustment: Rastomat mechanism for reliable mechanical adjustment up to 85°
• HPL lying surface: durable, easy-to-clean panel that maintains hygiene standards
• Individual wheel brakes: each of the four castors features an independent brake for maximum stability

Optional Accessories

• Backrest segment adjusted by gas springs
• Full-length X-ray cassette tunnel
• Reinforced carrying mattress with handles
• Central castors brake with central locking function

Materials and Finish
Steel profile frame with powder-coated finish; HPL board lying surface; stainless steel push handles and side rails; removable polyurethane-foam mattress with artificial leather cover. Coatings are selected for resistance to UV, mechanical damage and disinfectants.

Technical specifications

• Model name: Lama
• Frame: steel profiles with powder coating (resistant to UV, mechanical damage, disinfectants and cleaning agents)
• Lying surface: HPL board
• Backrest: mechanical adjustment (Rastomat), up to 85°
• Height adjustment: hydraulic pump
• Handles and side rails: stainless steel
• Mattress: removable polyurethane foam covered with artificial leather (reinforced mattress optional)
• Wheels: 4 castors, each with individual brake (optional central castors brake)
• Impact protection: 4 bumpers
• Optional: gas-spring backrest, X-ray cassette tunnel, reinforced carrying mattress
