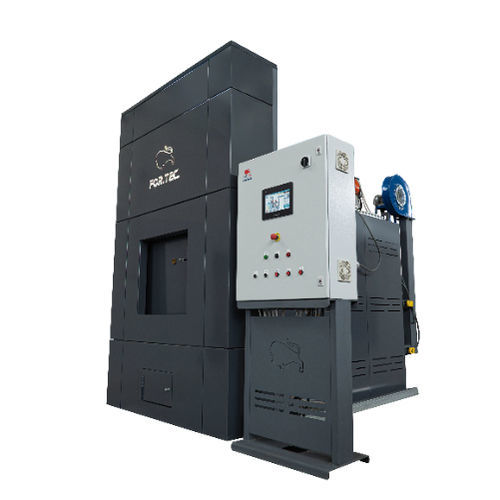

Cremation incinerator FD 4.0

for animalsfor petsautomated

Overview
Industrial-grade pet crematory designed for single or multiple cremations with precise ash separation. Oven mod. FD 4.0 integrates high-quality finishes, process automation and advanced emission control to meet strict national and European environmental standards.

Main features

• Cremation chamber volume: 0.8 m³, suitable for large animals and multiple cremations (ash separation) — up to 4 animals per cycle
• Hot-sole technology to accelerate cremation and prevent liquid stagnation at the oven base
• Shared-wall design between cremation and post-combustion chambers for continuous heat exchange and significant heat recovery
• Two-stage burners in cremation and post-combustion chambers to stabilise flame and temperature for single or multiple cycles
• Post-combustion chamber plus SCRUBBER-type emission reduction system fitted as standard to treat particulates and water-soluble acidic compounds
• Fully automated process managed by a Siemens PLC with high-resolution Touch Screen and For.Tec software; remote diagnostics and assistance available

Latest generation technology

• Siemens PLC with Touch Screen
• Hot-sole technology for improved throughput
• Low fuel consumption via heat recovery
• Remote support and monitoring capability

Applications / Business opportunities

• Individual or collective pet cremations with return of ashes to owners
• Cremation without ash return (municipal or contracted services)
• Incineration of carcasses from veterinary clinics, kennels, farms and research facilities
• Disposal of roadkill and animal carcasses from public services

Controls & integration
The unit is controlled via Siemens PLC with an intuitive synoptic and For.Tec software. Integration with enterprise management systems is possible; notifications by email or SMS can be configured to ensure traceability of each cycle.

Accessories
Optional accessories: automated loading systems, automated ash shredders, ash aspirators, cold carcass storage rooms and additional equipment to support start-up and operation of a cremation service.

Compliance
Manufactured in compliance with Commission Regulation (EU) No. 142/2011 implementing Regulation (EC) No. 1069/2009.

Technical specifications

• Cremation chamber volume: 0.8 m³
• Capacity: up to 4 animals per cycle (with ash separation)
• Hot-sole technology for faster cremation and liquid drainage
• Shared-wall design for heat recovery between cremation and post-combustion chambers
• Two-stage burners in both chambers
• Post-combustion chamber plus SCRUBBER-type emission control as standard
• Control: Siemens PLC with high-resolution Touch Screen; For.Tec software
• Remote diagnostics and assistance; notifications via email/SMS
• Low fuel consumption and reduced operational downtime
• Optional accessories: automated loaders, ash shredders, ash aspirators, cold storage rooms
• Regulatory compliance: Commission Regulation (EU) No. 142/2011 and Regulation (EC) No 1069/2009
