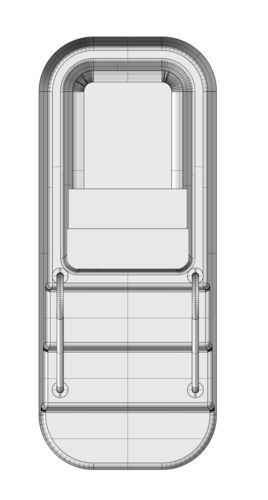

Two-seater cryotherapy bathtub Cryoplus

floor-mounted

Presentation
To meet operational needs while ensuring user comfort, Cryobain offers three cold immersion bath models designed to improve athlete recovery post-exercise. These variants suit both professional and recreational athletes and cover configurations from single to two-person units with different exterior finishes.

Models

• Cryoplus — Model adapted for larger builds: removal of the third step to save space and provide greater comfort inside the ice bath.
• Cryobain — Flagship model of the range: allows adjusting immersion depth according to the body area to be treated (seated, standing, full body) to adapt treatment posture.
• Cryoduo — Two-person model: replaces polyester steps with teak and stainless-steel footrests to double available space; allows two people to stand inside.

Benefits of an ice bath
On fatigue
Cold-water immersion minimizes fatigue after intense training, stimulates blood circulation and helps prevent post-exercise muscle soreness.
On the body
The thermal shock and hydrostatic pressure of the water support muscular and physical recovery after effort.
On the mind
Regular use of an ice bath can have positive effects on mental well-being: stress reduction, calming effect and potential contribution to psychological wellness.
Versatility
Cold exposure provides lasting benefits for the organism (immune strengthening, muscle tone, improved cardiovascular resilience) and is suitable for a wide range of recovery uses.

Customization and options
Custom design and manufacturing; choice of color and external cladding; personalization by logo application; possibility to build tanks from 1 to 10 places; optional accessories (e.g. cartridge filtration).

Technical characteristics / specifications

• Manufacture: Made in France.
• Tank materials: Fiberglass and polyester resin (no thermal loss).
• Structural elements: Stainless-steel handrails and steps; removable protective cover.
• Cooling & filtration: Integrated refrigeration unit and filtration (refrigeration unit concealed under the steps for some configurations).
• Control: Digital display for temperature control.
• Electrical consumption: 5 A/day (maximum load).
• Cooling power: 1.0 kW.
• Refrigerant type: R513A (TeqCO2: 1.04).
• Voltage / frequency: 230 V / 50 Hz (24/7 operation indicated); supply 230V / 1PH / 50Hz (delivered with mains plug N + T).
• Noise level: Sound power at 1.5 m: 50 dB.
• Temperature descent performance: 3 to 5 °C / hour.
• Minimum operating temperature: 7 °C (typical usable water range: 7 to 12 °C).
• Recommended immersion duration: time (minutes) = temperature (°C) (e.g. 7 °C → 7 minutes).
• Tank dimensions: Length 190 cm; Width 80 cm; Height 120 cm.
• Water height: 90 cm.
• Water volume: 450 L.
• Weight: Empty weight 140 kg; Filled weight 600 kg.
• Refrigeration unit (dimensions & weight): 29.6 cm x 46.5 cm x 34.0 cm (H x W x D); Weight: 21 kg.
• Space required for installation: approximately 2.2 m x 1.5 m.
• Plumbing required: water supply for filling; drain via 1/4-turn 1-inch valve at low point for emptying.
• Installation conditions: ventilated and aerated room (limit condensation); maximum recommended ambient temperature: 35 °C.
• Compliance & standards: CE marking (93/68/EEC), PED 97/23/EC for pressure equipment, EN 378 (1–4) for refrigeration systems, EN 13133 (refrigeration brazing), N.F. EN and N.F. C 15-100 sections 701 and 751.
