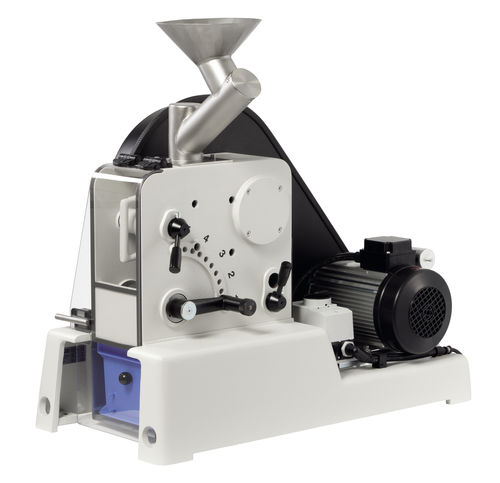

Jaw crusher PULVERISETTE 1 I classic line

laboratoryfor dental laboratoriessample

The compact FRITSCH Jaw Crusher PULVERISETTE 1 classic line is the ideal instrument for fast and effective pre-crushing of hard and very hard brittle materials - batchwise or continuous and even ferrous alloys are no problem for this instrument! Model I of the FRITSCH Jaw Crusher PULVERISETTE 1 classic line is ideal for a maximum feed size of 60 mm and a maximum continuous throughput of up to 140 kg/h depending on material and gap adjustment. Powerful pre-crushing The powerful comminution of the sample takes place in the Jaw Crusher under high pressure between one fixed and one movable crushing jaw in an enclosed grinding chamber. The final fineness is easily set from the outside with the 10-stage adjustable gap between the crushing jaws. The ground sample automatically falls downward – into a drawer for batchwise comminution or via a chute into a larger collection container for continuous operation or directly into a FRITSCH Disk Mill PULVERISETTE 13 classic line for further comminution. FEATURES Extremely fast and easy cleaning Final fineness 1-15 mm Quickly and easily filled Crushing jaws removable with just two hand motions Crushing jaws and lateral support walls in different materials for optimal adaption to your application – even for chrome and metal-free pre-crushing 10-stage adjustable gap width set from the outside Adaptable crushing jaw kinematics for higher final fineness for fast comminution in a narrow particle size range Safe operation due to thick-walled housing made of grey cast iron and enclosed grinding chamber with intervention protection of all moving parts
