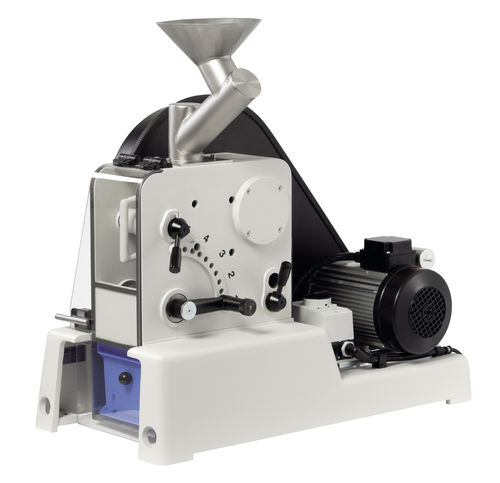

Jaw crusher PULVERISETTE 1 II classic line

laboratorysamplecontinuous

The compact FRITSCH Jaw Crusher PULVERISETTE 1 classic line is the ideal instrument for fast and effective pre-crushing of hard and very hard brittle materials - batchwise or continuous and even ferrous alloys are no problem for this instrument! Model II of the FRITSCH Jaw Crusher PULVERISETTE 1 classic line is ideal for a maximum feed size of 95 mm and a maximum continuous throughput of up to 200 kg/h depending on the material and gap adjustment. Powerful pre-crushing The powerful comminution of the sample takes place in the Jaw Crusher under high pressure between one fixed and one movable crushing jaw in an enclosed grinding chamber. The final fineness is easily set from the outside with the 10-stage adjustable gap between the crushing jaws. The ground sample automatically falls downward – into a drawer for batchwise comminution or via a chute into a larger collection container for continuous operation or directly into a FRITSCH Disk Mill PULVERISETTE 13 classic line for further comminution. FEATURES throughput up to 200 kg/h, max. feed size 95 mm, final fineness 1–15 mm Especially solid: thick-walled housing made of grey cast iron With two motions the crushing jaw can be removed quickly for thorough cleaning Dust-free operation due to connection of dust exhaust systems for automatic removal of fine dust arising during grinding Safe operation: enclosed grinding chamber with intervention protection of all moving parts 10-stage adjustable gap width set from the outside Adaptable crushing jaw kinematics for higher final fineness for fast comminution in a narrow particle size range
