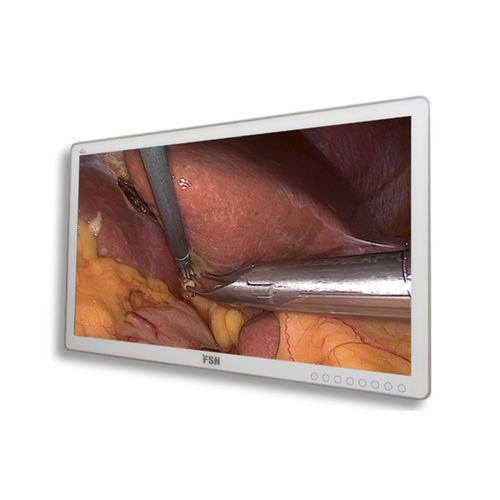

Medical display FM-E3250 series

surgicaloperating roommedical imaging

Product Overview
New visualization technologies are integrated in the FM-E3250 series to support surgical and clinical imaging workflows: mini-LED backlighting with 2,304 local dimming zones for improved brightness and contrast, HDR (PQ, HLG) support for enhanced detail in dark and bright regions, and UHD 3840 x 2160 resolution. The series offers multi-window modes (PIP, PBP, quad), firmware updates via internet, VoIP support and DC power outputs (12V & 5V) to power external devices.

Features

• Mini-LED local dimming with 2,304 dimming zones
• HDR support (PQ, HLG); dynamic contrast ratio up to 1,000,000 : 1
• Default 12G-SDI clone output
• Optional 12G-SDI and VoIP over 10G SFP (fiber and copper)
• 12V & 5V DC power outputs for peripheral devices

Specification
Panel: 32" mini-LED
Resolution: 3840 x 2160 pixels (UHD)
Active Area: 708.48 (H) mm x 398.52 (V) mm
Pixel Pitch (mm): 0.1845 x 0.1845
Response Time (typical): 20 ms
Dimming Zones: 2304
Number of Colors: 1.07 Billion, True 10-bit support
Brightness (typical): 1000 cd/m2 (full screen); 1800 cd/m2 (10% center patch)
Color Gamut: BT.709 (100%), BT.2020 / DCI-P3 (98%)
Contrast Ratio (typical): 1800 : 1 (dynamic up to 1,000,000 : 1)
Surface Treatment: Anti-reflection, anti-fingerprint
Viewing Angle (CR>10): R/L 178°, U/D 178°
Input Signal: FM-E3250D - HDMI (HDCP 2.3) x2, DP (1.4) x1; FM-E3250DG/DH - HDMI (HDCP 2.3) x2, DP (1.4) x1, SDI (12G) x2; FM-E3250DN - HDMI (HDCP 2.3) x2, DP (1.4) x1, SDI (12G) x1, 10G SFP+ (Rx) x1
Output Signal: FM-E3250D - SDI (12G) clone out x1; FM-E3250DG/DH - SDI (12G) clone out x1, SDI (12G) loop through x2; FM-E3250DN - SDI (12G) clone out x1, SDI (12G) loop through x1, 10G SFP+ (Tx) x1
DC Power Out: 12V/2A x1, 5V/2A x1
External Control: RS-232, Ethernet
GPIO Port: Source change, Single/PBP/PIP select, Recording indicator
Power Supply: AC/DC adaptor (AC 100~240V, DC 24V/12.5A)
Power Consumption: FM-E3250D - 190W max; FM-E3250DG - 200W max; FM-E3250DH - 200W max; FM-E3250DN - 205W max
Accessories Included: User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, BNC cable, Screw BH M4 x 14
Unit Dimension: 767(W) x 465.5(H) x 72.7(D) mm
Package Dimension: 905(W) x 744(H) x 230(D) mm
IP Rating (estimated): IP31 overall
Weight (monitor / shipping): FM-E3250D - 11.5 kg / 17.8 kg; FM-E3250DG - 11.6 kg / 17.9 kg; FM-E3250DH - 11.8 kg / 18.1 kg; FM-E3250DN - 11.7 kg / 18 kg
Certifications: ANSI/AAMI ES60601-1 (UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Technical specifications

• Series: FM-E3250 (32" 4K medical display)
• Display type: 32" mini-LED with local dimming (2304 zones)
• Native resolution: 3840 x 2160 (UHD)
• True 10-bit color support (1.07 billion colors)
• High brightness: up to 1800 cd/m2 (10% center patch)
• Wide color gamut: BT.709 and BT.2020 / DCI-P3 98%
• Multiple I/O including HDMI, DisplayPort, SDI (12G) and 10G SFP+
• DC power outputs: 12V/2A and 5V/2A for peripherals
• External control via RS-232 and Ethernet; GPIO for source/control functions
• Medical and safety certifications for clinical use
