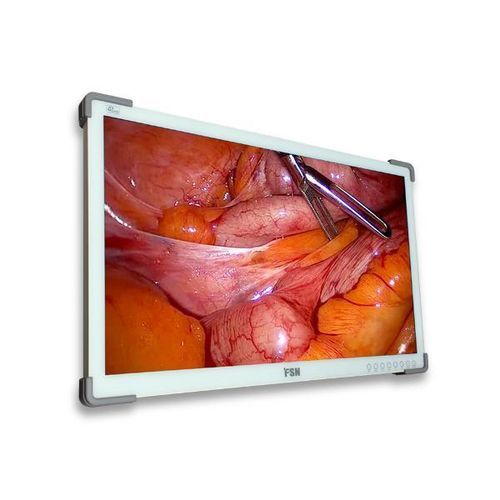

Medical display FM-E3230

medical imaging4K3840 × 2160

Overview
FM-E3230 series supports HDR (wide color gamut) for enhanced picture quality. Variants include FM-E3230D, FM-E3230DG (with 12G-SDI input/output option) and FM-E3230DN (with 10G SFP+ video-over-IP support and DC outputs). The series offers multi-window layouts, save/recall presets, and smart input sensing to switch to a secondary source if the main signal is lost.

Features

• Supports HDR for improved picture quality.
• Options for 12G-SDI (FM-E3230DG) or 10G SFP+ support (FM-E3230DN).
• Web-based network control system for remote management.
• 12V and 5V DC power outputs to power external devices (one 12V/2A and one 5V/2A).
• Multi-window layouts with save and recall of preset configurations.
• Smart input sensing that automatically switches to a designated second source when the main signal is not available.

Specification (key table items)
Panel: 32 inch TFT LCD (LED)
Resolution: 3840 x 2160 pixels
Active Area: 708.48 (H) mm x 398.82 (V) mm
Pixel Pitch (mm): 0.1845 x 0.1845
Response Time (typical): 18 ms
Number of Colors: 1.07 Billion
Brightness (typical): 800 cd/m2
Color Gamut: BT.709 (100%), BT.2020 (DCI-P3 95%)
Contrast Ratio (typical): 1500 : 1
Surface Treatment: Anti-reflection, anti-fingerprint
Viewing Angle (CR>10): R/L 178°, U/D 178°
Input Signal: FM-E3230D - 2 x HDMI, 1 x DP; FM-E3230DG - 2 x HDMI, 1 x DP, 2 x SDI (12G); FM-E3230DN - 3 x HDMI, 1 x DP, 1 x 10G SFP+(Rx)
Output Signal: FM-E3230D - 1 x HDMI; FM-E3230DG - 1 x HDMI, 2 x SDI (12G); FM-E3230DN - 1 x HDMI, 1 x 10G SFP+(Tx)
DC Power Out: 12V/2A x 1, 5V/2A x 1
External Control: RS-232, Ethernet
GPIO Port: Source change, Single/PBP/PIP select, Recording indicator
Power Supply: AC/DC Adaptor (AC 100~240V, DC 24V/8.3A)
Power Consumption: FM-E3230D - 150W max; FM-E3230DG - 160W max; FM-E3230DN - 155W max
Accessories Included: User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, BNC cable (FM-E3230DG), Screw BH M4 x 14
Unit Dimension: 773 (W) x 478 (H) x 75.2 (D) mm (30.43 x 18.82 x 2.96 inch)
Package Dimension: 905 (W) x 744 (H) x 230 (D) mm (35.6 x 29.3 x 9 inch)
IP Rating: IP33 overall
Weights: FM-E3230D - 10.5 kg (monitor with cover); FM-E3230DG - 10.7 kg; FM-E3230DN - 10.6 kg (shipping package weights listed in specifications)
Certifications: ANSI/AAMI ES60601-1 (UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Technical specifications

• Screen size: 32" 4K UHD (3840 x 2160).
• Brightness: 800 cd/m2; Contrast ratio: 1500:1.
• Color: 1.07 Billion colors; Color gamut: BT.709 100%, DCI-P3 ~95%.
• Inputs/Outputs vary by variant (HDMI, DisplayPort, 12G-SDI for DG, 10G SFP+ for DN).
• External control via RS-232 and Ethernet; GPIO for source/recording controls.
• DC power outputs: 12V/2A and 5V/2A for peripheral devices.
• Power supply: AC 100~240V with included AC/DC adaptor; max power consumption 150–160W depending on model.
• Mechanical dimensions and weights as specified; IP33 overall rating; multiple regulatory and medical certifications.
