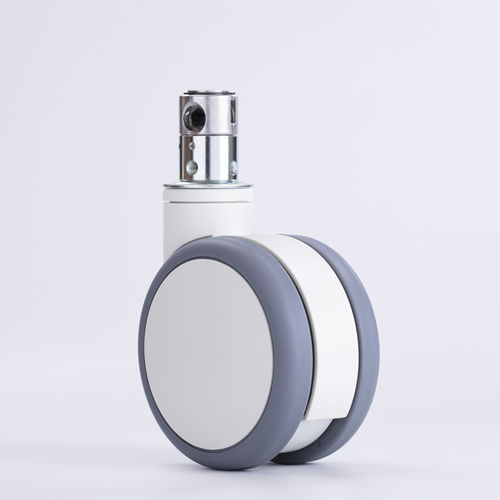

Swiveling wheel T125C-2-062-D32X50-3D-2/30with electrical central locking
Add to favorites
Compare this product
Characteristics
- Options
- swiveling, with electrical central locking
- Load capacity
100 kg, 125 kg
(220 lb, 276 lb)- Wheel diameter
125 mm
(4.921 in)
Description
5 inch Double Wheel Central Locking Caster
Product Description
Swivel caster with total lock and free movement. Twin wheels with precision ball bearing and covers. Housing and wheel core made of Nylon-PA6. High load-bearing capacity TPU wheel tread assures of quiet and stable rolling.
Apply to the stem with cam hole.
Specification
Caster width - 75mm
Tread width - 17mm
Bolt diameter - 32mm
Bolt Length - 50mm
Offset - 38.5mm
Swivel Radius - 101mm
Swivel Interference - 202mm
Overall height - 153mm
Temperature - -30/+80℃
Standard - EN12531
Weight - 1.05KG
