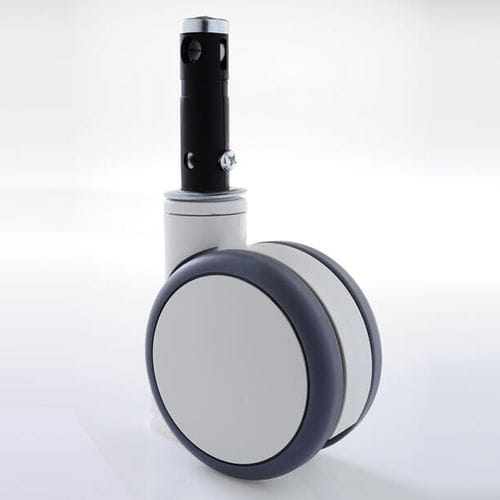

Wheel with electrical central locking T125C-ZX-062-D28X96-3D30swiveling
Add to favorites
Compare this product
Characteristics
- Options
- with electrical central locking, swiveling
- Load capacity
100 kg, 125 kg
(220 lb, 276 lb)- Wheel diameter
125 mm
(4.921 in)
Description
5 inch Double Wheel Central Locking Caster
Product Description
Central locking caster with total lock, directional lock and free movement. Twin wheels with precision ball bearing and covers. Housing and wheel core made of Nylon-PA6. High load-bearing capacity TPU wheel tread assures of quiet and stable rolling.
Apply to the stem with cam hole.
Specification
Caster width - 75mm
Tread width - 17mm
Bolt diameter - 28mm
Bolt Length - 96mm
Offset - 38.5mm
Swivel Radius - 101mm
Swivel Interference - 202mm
Overall height - 152mm
Temperature - -30/+80℃
Standard - EN12531
Weight - 1.1KG
