Height-adjustable patient chair 5585

recliningergonomicmanual

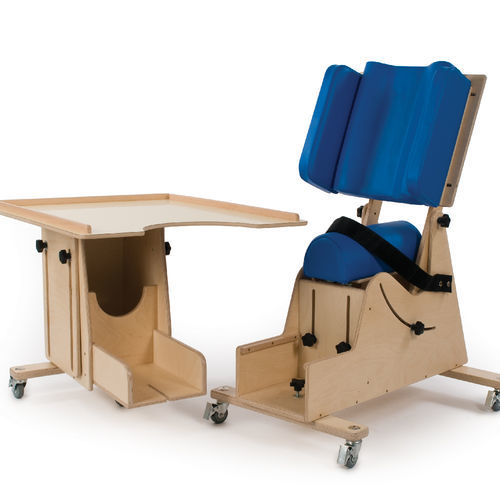

Product Description The multi-adjustable hip spica chair is designed for children requiring leg abduction supports or immobilisation in plaster casts. Available in three sizes, it suits users from approximately 18 months to young adults. The front section includes a storage area and detaches easily from the seat for access. The backrest fully reclines to allow a comfortable resting or relaxation position. Supplied complete with pelvic strap, shoulder harness and tray. Optional lambs wool seat cover for added comfort. Other hip spica variants are available, including STEPS hip spica and a portable hip spica.

Size Guide (table) Code | Size | Length (mm) | Seat height (mm) | Back height (mm) | Tray size | Max user weight (kg) | Product weight (kg)
5585 | 1 | 1000 | 400-560 | 370-660 | 760x600 | 85 | 80
5586 | 2 | 1000 | 400-560 | 450-750 | 760x600 | 85 | 81
5587 | 3 | 1000 | 400-560 | 550-850 | 760x600 | 85 | 82

Colour Ranges Deluxe range. Available colours: Purple, Red, Blue, Grey. Colours are indicative and may vary due to print limitations; material samples can be provided on request.

Accessories / Extras

• Pelvic strap (supplied)
• Shoulder harness (supplied)
• Tray (supplied)
• Lambs wool seat cover (accessory)

Technical specifications

• Age guide: 18 months – adult
• Available in three sizes (codes 5585, 5586, 5587)
• Length (all sizes): 1000 mm
• Seat height (all sizes): 400–560 mm
• Back height: size 1 = 370–660 mm; size 2 = 450–750 mm; size 3 = 550–850 mm
• Tray size: 760 x 600 mm
• Maximum user weight (all sizes): 85 kg
• Product weight: size 1 = 80 kg; size 2 = 81 kg; size 3 = 82 kg
• Supplied with pelvic strap, shoulder harness and tray
• Optional lambs wool seat cover for additional comfort
• VAT exempt
