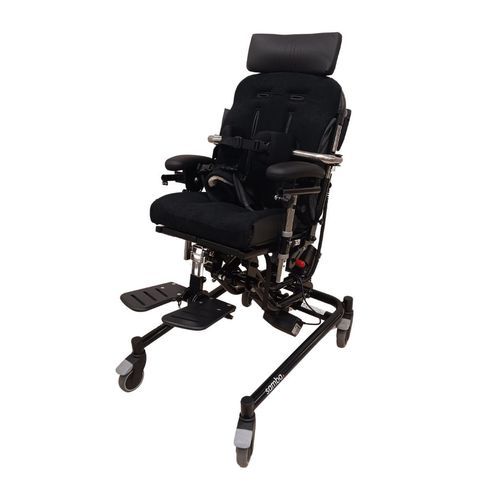

Height-adjustable patient chair Samba

tiltingmanualelectric

Overview
The Samba is a clinically oriented postural support chair designed for a wide range of presentations from mild to complex. It prioritises pelvic positioning with an adjustable 4-point pelvic strap to promote an anterior pelvis tilt and reduce sacral sitting. The chair is configurable to provide variable levels of support according to clinical need.

Postural support options

• Adjustable 4-point pelvic strap to stabilise pelvic position
• Soft cross harness for enhanced postural control; supports shoulder stabilisation and spinal alignment; compatible with the pelvic strap
• Contoured seat and backrest with removable/addable foam inserts to customise mid-line support without fixed laterals
• Optional laterals, headrests (Rumba or Samba style), pommel/separator, contour wedges and other accessories to tailor support

Tilt, transfer and height adjustment
The Samba offers a tilt-in-space function operated by safety catch and lever to enable controlled transfers. Seat height range is 310 mm–605 mm (295 mm range), suitable for multi-height environments. An optional electric hi-lo base is available for powered height adjustment and increased user weight capacity.

Materials and features
Levitex Foam Technology is associated with the product. VAT exempt. Age guide: 2 Years - Adult.

New feature
The Samba is now available with a plastic tray.

Additional information (table)
Levitex: Included, Not Included

Size Guide (table)
Measurement | Size 1 | Size 2 | Size 3 | Size 4
Code | 8801 | 8802 | 8803 | 8804
Tilt in space (º) | 12-25 | 12-25 | 12-25 | 12-25
Seat height (mm) | 310-605 | 310-605 | 310-605 | 310-605
Seat depth (mm) | 180-280 | 245-340 | 300-400 | 375-500
Seat width (mm) | 300 | 340 | 340 | 390
Lower leg length to footrest (mm) | 150-170 | 200-250 | 255-335 | 310-460
Back angle (º) | 6-18 | 6-18 | 6-18 | 6-18
Back height (mm) | 360-400 | 420-460 | 470-540 | 480-560
Armrest height (mm) | 510-880 | 510-880 | 510-880 | 510-880
Armrest angle (º) | 39 | 39 | 39 | 39
Armrest height adjustment (mm) | 90 | 90 | 90 | 90
Overall chair height (mm) | 670-1005 | 740-1060 | 790-1110 | 910-1240
Base length and width (mm) | 650 x 510 | 650 x 510 | 650 x 510 | 650 x 510
Tray size (mm) | 580 x 530 | 625 x 530 | 625 x 530 | 675 x 585
Max user weight (kg) | 80 | 80 | 80 | 80
Product weight (kg) | 31 | 34 | 35 | 38

Accessories & options

• Soft cross harness
• Mid-line support harness with sheepskin pad
• Shoulder harness for mid-line harness
• High back
• Center seat contour wedge
• Adjustable footrest & footplate, flip-up footrest
• Rumba style or Samba style headrests
• Pommel, lateral seat/back contour rolls, thigh guides
• Rigid or flexi swing-away lateral supports
• Whitmyer interface plate, suspension rail, tray grab rail, tray
• 5-piece foam roll kit, elbow protectors, other seating accessories

Technical specifications

• Seat height range: 310 mm – 605 mm (295 mm range)
• Tilt-in-space: 12°–25° (depending on size)
• Seat depth (by size): Size 1 180–280 mm; Size 2 245–340 mm; Size 3 300–400 mm; Size 4 375–500 mm
• Seat width (by size): 300 mm / 340 mm / 340 mm / 390 mm
• Back angle: 6°–18°
• Back height (by size): 360–400 mm; 420–460 mm; 470–540 mm; 480–560 mm
• Armrest height: 510–880 mm; adjustment 90 mm; armrest angle 39°
• Lower leg length to footrest (by size): 150–170 mm; 200–250 mm; 255–335 mm; 310–460 mm
• Overall chair height (by size): 670–1005 mm; 740–1060 mm; 790–1110 mm; 910–1240 mm
• Base dimensions: 650 x 510 mm
• Tray sizes (by size): 580 x 530 mm; 625 x 530 mm; 625 x 530 mm; 675 x 585 mm
• Maximum user weight: 80 kg
• Product weight (by size): 31 kg; 34 kg; 35 kg; 38 kg
• Levitex Foam Technology: referenced as included/available
• VAT status: VAT exempt
• Age guide: 2 Years – Adult
