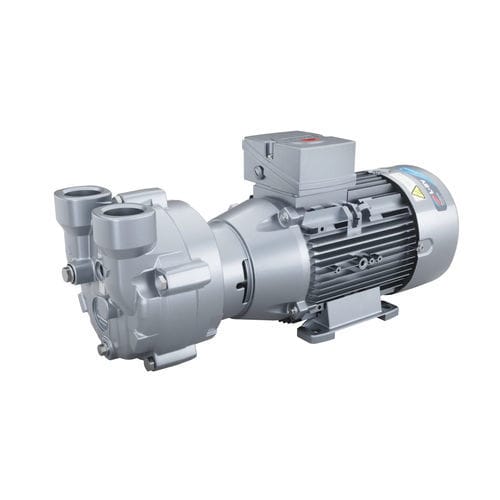

Ceramic furnace vacuum pump L-BV2

liquid ring

Introduction
The L-BV2 liquid ring vacuum pump is engineered for industrial use where reduced liquid consumption and compact installation are required. The design supports multiple material combinations to resist erosion and corrosion while ensuring consistent, low-noise operation across process conditions.

Benefits

• Liquid efficiency: up to 50% lower liquid consumption versus conventional designs.
• Material flexibility: stainless steel, bronze, ceramic, or cast iron with ceramic coating to match process needs.
• Corrosion and erosion resistance through tailored material selection and ceramic surfaces.
• Quiet, cavitation-free operation for stable process performance.
• Extended service life via reinforced stainless-steel shafts and ceramic-coated components.
• Reliable bearings: high-quality roller bearings with additional lubricant reservoir for safe, low-maintenance operation under heavy loads.

Technical Data

• Volume flow range: 23 to 145 m³/h.
• Available materials: stainless steel, bronze, ceramic, cast iron with ceramic coating.
• Designed for reduced liquid consumption and compact, space-saving installations.
• IE3 / Nema premium motor options available on request.

Industries and Applications

• Ceramic and brick industry
• Drying systems
• Environmental engineering
• Food & beverage processing
• Lifting & handling systems
• Packaging lines
• Plastics industry

Features / Technical specifications

• Model family: L-BV2 liquid ring vacuum pump
• Volume flow: 23–145 m³/h
• Materials of construction: stainless steel, bronze, ceramic, cast iron (with ceramic coating)
• Shaft: reinforced stainless-steel shaft options for pump section
• Bearings: high-quality roller bearings with lubricant reservoir
• Performance: engineered for up to 50% lower liquid consumption and space-saving footprint
