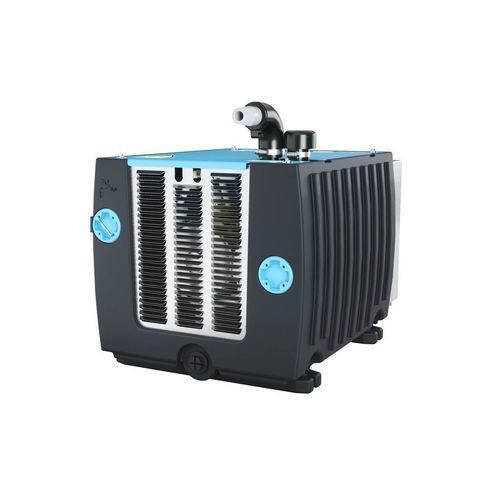

Laboratory vacuum pump L-BL2

liquid ringportableoil-free

Product overview
The L-BL2 is a compact, air-cooled liquid ring vacuum pump delivered as a ready-to-operate "Pump in a Box" unit. It provides 100% oil-free, contact-free compression with a closed water circuit, eliminating the need for fresh water supply during operation. The patented discharge-air cooling limits temperature rise to ≤ 15 K above ambient, making the L-BL2 suitable for humid environments and continuous-duty applications while maintaining reliable performance up to ~95 % vacuum and a typical flow range of 27–275 m³/h.

Features & Benefits

• Compact plug-and-play unit for quick installation
• 100% oil-free operation — no oil contamination risk
• Closed water circuit — zero fresh water consumption
• Contact-free compression for minimal wear and long service life
• Patented discharge-air cooling keeps exhaust temperature low (≤ 15 K rise)
• Resistant to vapor and condensation — reliable in humid conditions
• Low noise level suitable for industrial environments

"Pump in a Box" configuration — included components

• L-BV liquid ring pump (L-BL2 configuration)
• Industrial electric motor
• Discharge separator
• Seal-water cooler (closed circuit)
• Discharge-air cooler (patented)

Typical advantages

• Minimal maintenance due to contact-free compression
• Stable operating temperature (≤ 15 K rise) for extended duty
• Suitable for handling vapors and condensable gases
• Portable, space-saving design for flexible deployment

Industries & Applications

• Food and beverage packaging and processing
• Dairy industry
• Chemical and pharmaceutical processes
• Plastics and molding
• Printing and paper handling
• Industrial parts cleaning
• Environmental engineering and carbon capture
• Fuel cell systems and process gas handling

Technical specifications

• Model: L-BL2
• Type: Compact, air-cooled liquid ring vacuum pump (100% oil-free)
• Typical volume flow range: 27 to 275 m³/h (model dependent)
• Vacuum capability: up to ~95 % vacuum
• Cooling: Discharge-air cooling (patented) — limits temperature rise to ≤ 15 K above ambient
• Water handling: Closed water circuit — no fresh water required
• Operation: Contact-free compression — minimal wear, low maintenance
• Supply: Delivered as ready-to-operate "Pump in a Box" including pump, motor, separator, seal-water cooler and discharge-air cooler
