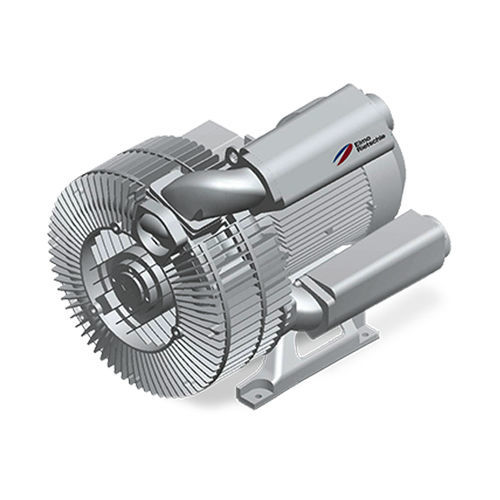

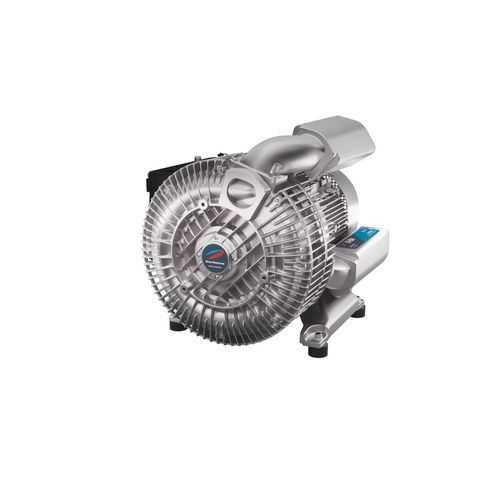

Laboratory blower G-BH2

1-workstationsilentlow power consumption

Overview
The G-BH2 series is a side-channel blower range delivering volume flows from 330 to 850 m³/h and differential pressures up to 1,100 mbar. Designed for continuous, wear-free operation, the G-BH2 supports frequency-converter control up to 87 Hz and integrates an IE3 motor in the standard version.

Benefits

• Wear-free operation
• Low operating and energy costs
• Extremely smooth running
• Very low noise level
• Noise reduction up to 50% through acoustic engineering
• Resistant to dust and fluff
• Pulsation-free delivery (suitable for frequency-converter operation up to 87 Hz)
• Up to 40,000 hours maintenance-free runtime
• Standard IE3 motor

Technical Data

• Volume flow: 330 – 850 m³/h
• Differential pressure: up to 1,100 mbar
• Frequency-converter operation: up to 87 Hz
• Maintenance-free runtime: up to 40,000 hours
• Standard motor efficiency class: IE3

Industries / Applications

• Food and non-food packaging
• Food processing
• Beverage industry
• Dairy industry
• Chemical and pharmaceutical industry
• Plastics industry
• Printing and paper industry
• Industrial parts cleaning
• Environmental engineering
• Carbon capture
• Fuel cell industry

Technical Specifications

• Commercial designation: G-BH2
• Volume flow range: 330 – 850 m³/h
• Maximum differential pressure: up to 1,100 mbar
• Frequency-converter compatibility: up to 87 Hz
• Design: wear-free, low maintenance
• Noise: very low; noise reduction up to 50% via acoustic engineering
• Resistance to dust and fluff; pulsation-free delivery
• Maintenance-free runtime: up to 40,000 hours
• Standard motor efficiency class: IE3
