Laboratory blower G-BH100

1-workstation

Product overview

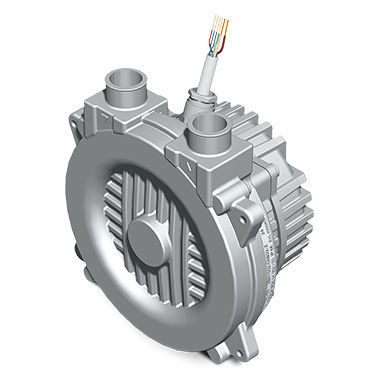

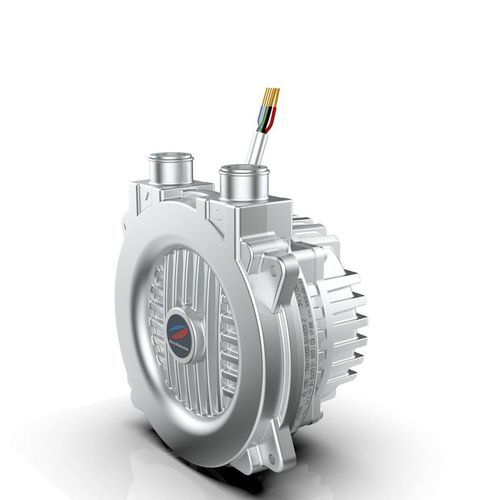

The G-BH100 is a compact side-channel blower driven by an electronically commutated DC motor (EC/DC). It provides an adjustable volume flow with high efficiency and is designed for maintenance-free operation for more than 20,000 operating hours. Integrated operating electronics enable infinitely variable control of speed and output.

Benefits

• Approx. height and width: 125 mm; depth: 60 mm.
• Smallest side-channel blower available on the market.
• Adjustable volume flow (21–35 m³/h).
• Maximum differential pressure up to 100 mbar.
• Driven by an electronically commutated DC motor for efficient operation.
• Maintenance-free operation for >20,000 operating hours.
• Integrated electronics for stepless speed and output control.

Technical Data (summary)

• Volume flow: 21–35 m³/h
• Differential pressure: up to 100 mbar

Industries and Applications

• Food and non-food packaging
• Food processing
• Beverage industry
• Dairy industry
• Chemical and pharmaceutical processing
• Plastics industry
• Printing and paper industry
• Industrial parts cleaning
• Environmental engineering
• Carbon capture
• Fuel cell industry

Technical specifications

• Motor: electronically commutated DC motor (EC/DC)
• Maintenance interval: maintenance-free design for >20,000 operating hours
• Control: integrated operating electronics for infinitely variable speed/output control
• Dimensions (approx.): 125 × 125 × 60 mm (H × W × D)
• Volume flow range: 21–35 m³/h
• Max differential pressure: up to 100 mbar
• Design: compact, robust side-channel blower suitable for variable loads
