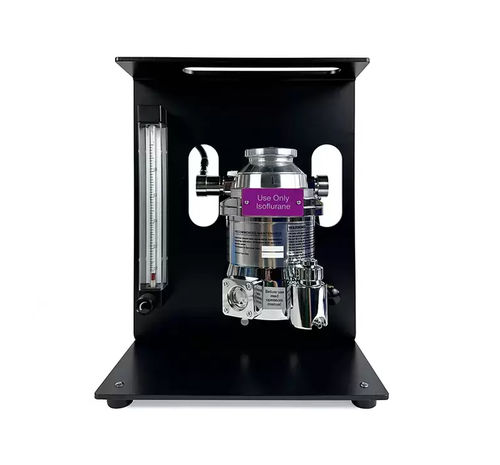

Animal research veterinary anesthesia workstation ABS

for small animalsfor ratsfor rodents

Overview
The ABS gas anesthesia machine for mice and rats is designed for small laboratory animals (mice, rats, guinea pigs, rabbits). It provides precise control of inhalation anesthesia, straightforward operation and rapid adjustment of anesthetic depth to support safe procedures and compliance with animal welfare.

Main features

• Single‑tube non‑rebreathing circuit to reduce dead space
• Glass tube oxygen flowmeter suitable for low‑flow anesthesia with precise adjustment
• Standard VIP3000 series isoflurane vaporizer (stable output, good sealing); alternative vaporizers (sevoflurane, enflurane) available
• Built‑in temperature compensation to maintain stable agent output regardless of flow or temperature
• Safety locking device to prevent accidental agent release
• Large viewing glass window for visual monitoring of agent level
• Simple filling/refill mechanism for easy use
• Compact rack design for easy mobility and laboratory installation
• Accurate control of anesthetic depth; animals recover rapidly after anesthesia cessation, facilitating post‑operative procedures

Configuration

• Standard isoflurane vaporizer (other vaporizers available as options)
• Standard induction chambers for rats/mice: rat chamber approx. 20×15×12 cm; optional mouse chamber approx. 15×10×9 cm; optional rabbit chamber approx. 28×21×19 cm; good sealing and visibility
• Included anesthesia masks in sizes for rat, mouse and rabbit
• Standard activated charcoal waste gas canister; optional negative‑pressure scavenging unit to improve waste gas capture
• One‑button switch for rapid change between induction and maintenance modes
• Export‑grade gas flow components for precise control of gas rates
• Optional multi‑channel tubing, multi‑channel flow controllers, integrated anesthesia platform, waste gas treatment units
• Optional accessories: animal warming unit, recovery box, ECG monitor, pulse oximeter and other perioperative monitoring devices
• Long‑term supply of certified isoflurane reagent available

Model
ABS

Installation images
The product page includes installation case photos and equipment images showing laboratory use and integration scenarios.

References (selected)
The page lists representative references related to animal experiments, anesthesia practices and animal models for research context.

Technical specifications

• Model: ABS
• Suitable subjects: mice, rats, guinea pigs, rabbits and other small laboratory animals
• Breathing system: single‑tube non‑rebreathing circuit
• Flowmeter: glass tube oxygen flowmeter, precise adjustment for low flow
• Vaporizer: standard VIP3000 isoflurane vaporizer; sevoflurane/enflurane options available
• Temperature compensation: built‑in temperature compensation to stabilize agent output
• Waste gas: standard activated charcoal canister; optional negative‑pressure scavenger
• Induction chamber example sizes: rat approx. 20×15×12 cm; mouse approx. 15×10×9 cm; rabbit approx. 28×21×19 cm (customizable)
• Accessories: multi‑size masks, refill device, safety lock, viewing window, etc.
