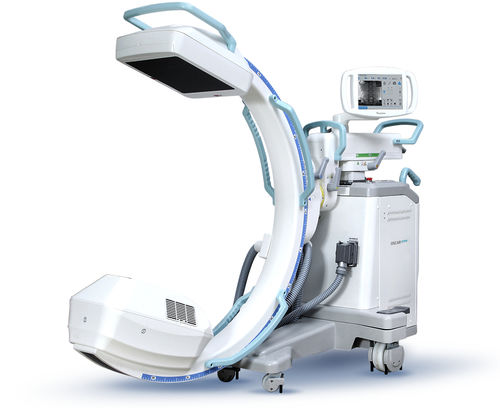

Mobile C-arm OSCAR PRIME

with flat panel detectorwith integrated video monitor

Excellent Image Quality with Fiat Panel Detector 26X26cm Fiat Panel Detector provides excellent image quality (Max. 6.8MP) with large FOV(Field of View). Optimized HFG 5.3kW HFG with stationary tube provides optimized images with stable power. Generator Cooling system The generator cooling system prevents overheating while allowing for longer usage during operation. Live image & Communication User-friendly 10.4" touch screen operation panel enables two-way communication between doctor and operator by using live image. Wide Free Space & Orbital Rotation 775mm free space and 180° orbital rotation provides convenient opération environment for operator. Radiation Safety Solution : Low Dose Mode Low Dose Mode is a function that sets and manages the radiation dose automatically and provides the optimized image by the procédure type and site. It guarantees the safety of patients and médical staff who needs to be exposed by radiation dose for a long time during the procedure. Auto/Virtual Collimation Auto Collimation is a function that reduces the radiation dose after detecting/controlling the outside space of the target area. Virtual Collimation is a function that sets the customized area for reducing unnecessary radiation dose. Angiography Package DSA(Digital Subtraction Angiography) helps various clinical diagnosis and procedures through the vessel image information after injecting contrast medium. Certifications EU : MDR(CE) / USA : FDA/ Brazil : ANVISA/ Japan : PMDA/ Korea : MFDS CHARACTERISTICS 260X260 Flat Panel Detector 5.3kW HFG 10.4" Touch Screen 180° Dynamic Orbital Rotation Free Space 775mm / SID 1,000mm Digital Subtraction Angiography (DSA)
