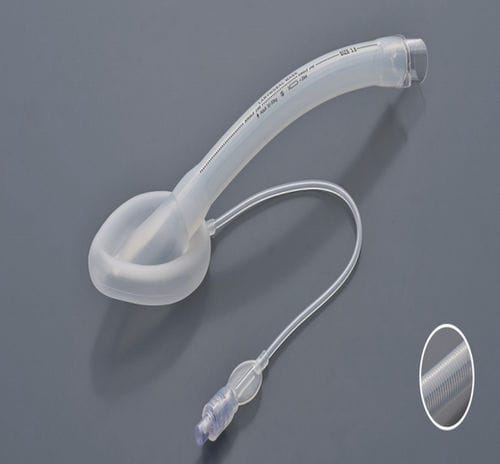

Oral laryngeal mask H020 series

siliconedisposabletransparent

Product description
Made of pure medical grade silicone
Non-toxic. Exclusive soft seal cuff designed for insertion and effective sealing
Reinforced LM is specially designed for ENT, ophthalmic, dental and other head & neck surgeries
Kink-free wire-reinforced tube eliminates the risk of airway tube occlusion

Codes and sizes (table)
Code Standard LM | Code Reinforced LM | Size | Patient Weight | Cuff Volume
H0201 | H0211 | 1.0 | <5kgs | <4ml
H0202 | H0212 | 1.5 | 5-10kgs | <7ml
H0203 | H0213 | 2.0 | 10-20kgs | <10ml
H0204 | H0214 | 2.5 | 20-30kgs | <14ml
H0205 | H0215 | 3.0 | 30-50kgs | <20ml
H0206 | H0216 | 4.0 | 50-70kgs | <30ml
H0207 | H0217 | 5.0 | 70-100kgs | <40ml

Technical features / specifications

• Material: Pure medical grade silicone
• Cuff: Exclusive soft-seal cuff, non-toxic, designed for atraumatic insertion and airway sealing
• Reinforced option: Reinforced Laryngeal Mask (Reinforced LM) optimized for ENT, ophthalmic, dental and other head & neck procedures
• Tube: Kink-free, wire-reinforced tube to eliminate risk of airway tube occlusion
• Available sizes and product codes: see table above (Standard LM codes H0201–H0207; Reinforced LM codes H0211–H0217)
