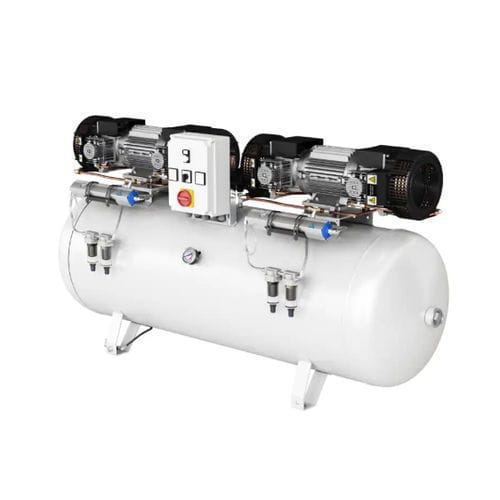

Medical air compressor CLINIC DRY 12.500 HSmembranewith air dryeroil-free
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- medical
- Technology
- membrane
- Options and accessories
- oil-free, with air dryer
- Pressure
10 bar
(145.04 psi)- Flow
400 l/min, 530 l/min
(105.67 us gal/min, 140.01 us gal/min)- Power
6 kW
(8.16 hp)- Weight
348 kg
(767.2 lb)- Noise level
78 dB
- Length
2,040 mm
(80.3 in)- Width
700 mm
(27.6 in)- Height
980 mm
(38.6 in)
Description
Condensate Treatment - Membrane dryer | Dew point -40°C
Particulate Treatment - 0,01µm | Sterilizing filter
Air purity class (ISO 8573-1) - 0-2-0
Voltage (V) - 400,00
Frequency (Hz) - 50,00
Nominal rating (HP) - 8,00
Rotation speed (rpm) - 1.400,00
Starting current (A) - 13,00
Number of cylinders - 8
FAD (L/min) - 680,00
Duty cycle - S1 100%
Tank Coating - Epoxy (internal/external)
Tank capacity (lt) - 500,00
First Maintenance (hours) - 3000
Hour Meter - Included
Tank Automatic Drain Valve - Optional
VIDEO
